Stepper Motor driver

Manufacturers of compact micro stepping motor controller driver for reliable CNC and motion control applications at affordable price.

Micro-stepping is achieved by sub-dividing the basic motor step, by controlling the current in the two motor windings and thus producing a number of intermediate step positions (micro-steps) between the full step positions (Full Steps). To be able to produce smooth motion and approximately same torque on all micro-steps, the intermediate positions must be as equally sub-divided as possible, while motor is running.

Accurate micro stepping places a great deal of accuracy demand on current control profile at all levels of currents on the drive. The phase current profiles necessary to produce the micro steps are sinusoidal . Our drives can be supplied optimized for a specific motor for high performance, high-resolution micro-step systems, for a little additional price (one time cost).

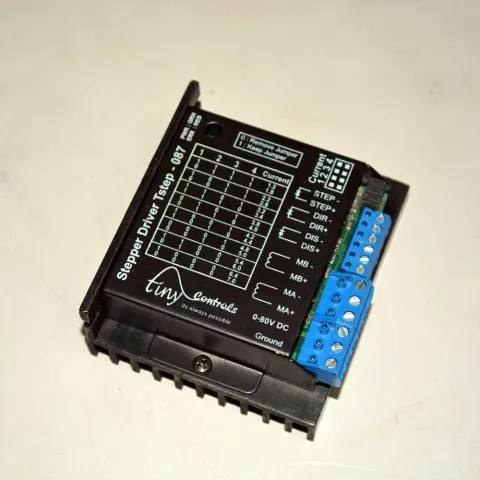

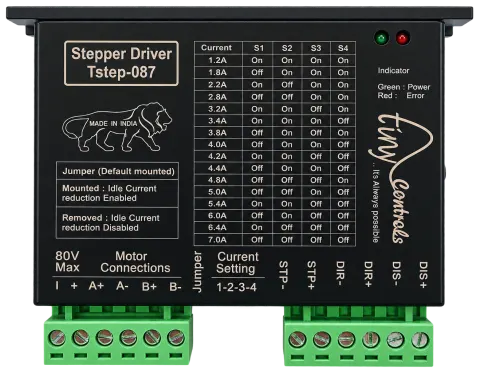

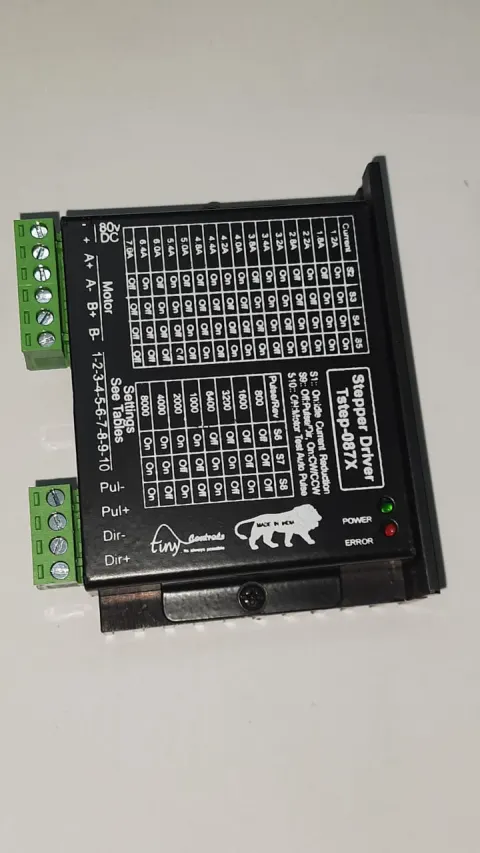

Features of stepper driver tstep-087 :

• Precise micro-stepping using sinusoidal current for accurate motion.
• Bipolar Driver can drive motors at 20V-80V and 0.5A-7A
• DIP selectable current for driving range of stepper motors.
• Opto-isolated Step/Direction Inputs and Error output.
• Low stepper motor heating with automatic current reduction while motor is stopped
• Very compact design for easy implementation in control box or panels
• Automatic current compensation to achieve maximum torque at high rotation speeds
• Smooth motion without any resonance or vibrations at low speeds.
• Capable of driving small to big motors (NEMA-23 to NEMA42 Motors)
• Driver is capable of driving 4, 6 or 8 lead stepper motors in Bipolar Series, Half Coil or parallel connection
• Proudly Made In India.
