2-Phase Easy Servo Motor

Closed-loop stepper motors with a built-in encoder, for pairing with this catalogue's SDW60/SDW86 drives.

Need selection help?

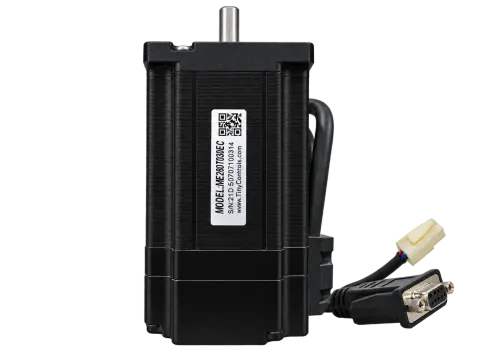

ME260T030EC : Stepper motor, close loop 3.0Nm
ME260T030EC : Stepper motor, close loop 3.0Nm
ME260T030EC

Closed-loop stepper motor, 60mm flange, 5.0 A/phase, 3.0 Nm / 30.6 kg-cm holding torque, built-in encoder.

60 mm (NEMA 24) flange size 5.0 A phase current 3.0 Nm \ 30.59 kg-cm holding torque
₹5,000 In stock

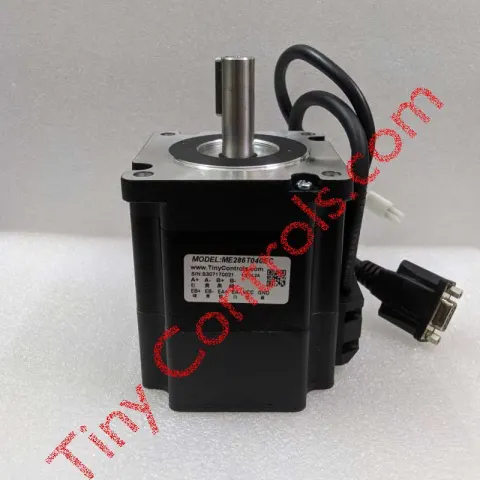

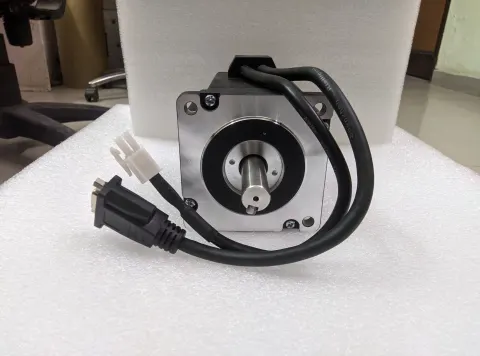

ME286T040EC closed-loop stepper motor, 4 Nm, NEMA 34 86mm flange with encoder cable — additional view
ME286T040EC Stepper motor, close loop, 4.5Nm
ME286T040EC

Closed-loop stepper motor, 86mm flange, 4.2 A/phase, 4.5 Nm / 45.9 kg-cm holding torque, built-in encoder.

86 mm (NEMA 34) flange size 4.2 A phase current 4.5 Nm \ 45.89 kg-cm holding torque
₹5,800 In stock

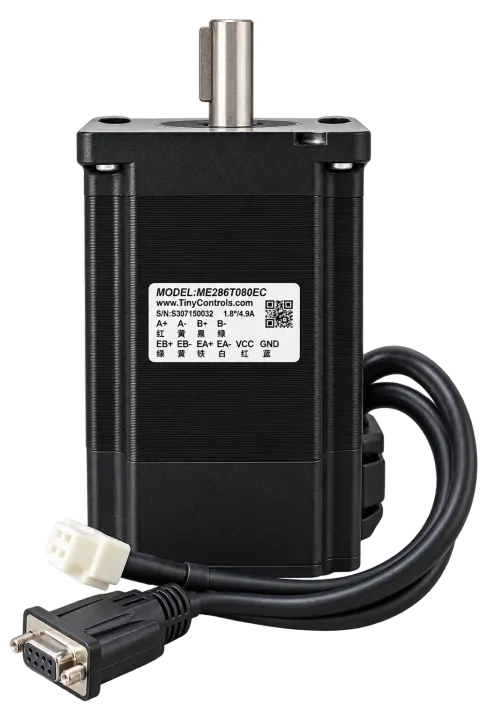

ME286T080EC closed-loop stepper motor, 8 Nm, NEMA 34 86mm flange with encoder cable — additional view
ME286T080EC Stepper motor, close loop 8.5Nm
ME286T080EC

Closed-loop stepper motor, 86mm flange, 4.9 A/phase, 8.5 Nm / 86.7 kg-cm holding torque, built-in encoder.

86 mm (NEMA 34) flange size 4.9 A phase current 8.5 Nm \ 86.68 kg-cm holding torque
₹7,800 In stock

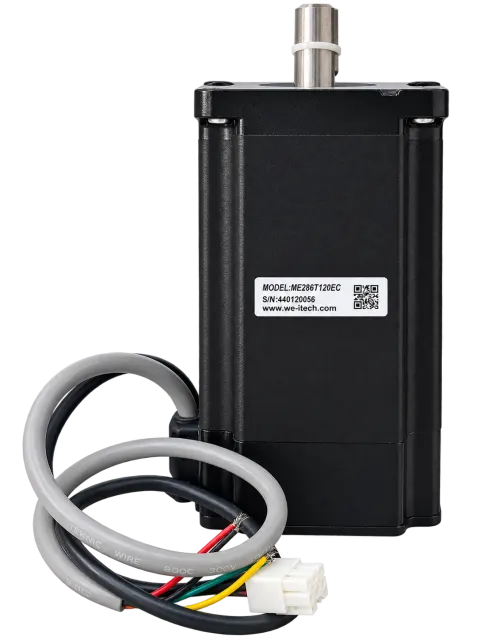

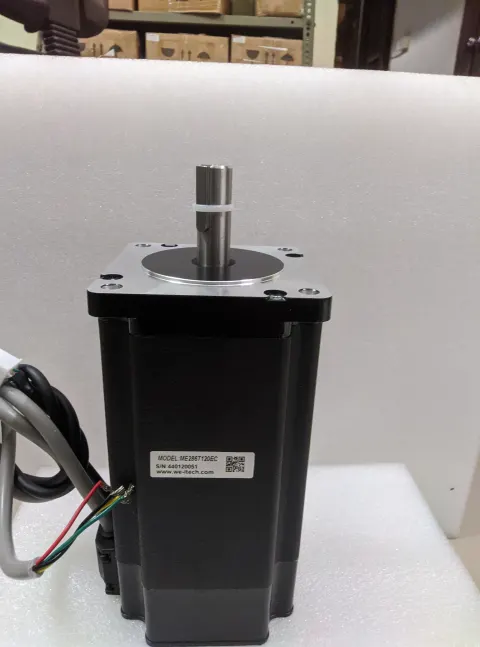

ME286T120EC closed-loop stepper motor, 12 Nm, NEMA 34 86mm flange with encoder cable
ME286T120EC : Stepper motor, close loop 12.0Nm
ME286T120EC

Closed-loop stepper motor, 86mm flange, 6.0 A/phase, 12 Nm / 122.4 kg-cm holding torque, built-in encoder.

86 mm (NEMA 34) flange size 6.0 A phase current 12 Nm \ 122.37 kg-cm holding torque
₹9,800 In stock

Four motors: the 60mm ME260T030EC (3.0 Nm / 30.6 kg-cm) pairs with the SDW60; the 86mm ME286 series (4.5 to 12 Nm / 45.9 to 122.4 kg-cm) pairs with the SDW86. Unlike an open-loop stepper, each carries a built-in shaft encoder that only does anything connected to a closed-loop drive built to read it — the encoder and power cables are sold separately.
