2 products

Linear Supply Cards

Rectifier and filter cards for building a linear power supply around your own transformer.

Need selection help?

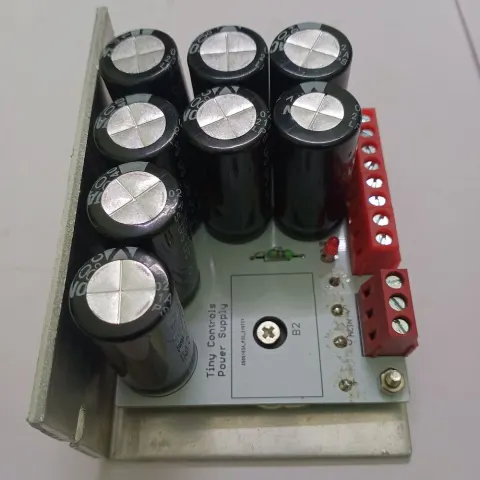

TLP-04 63V Rectifier-Filter Card, bulk capacitance 8000 uF
TLP-04 63V Rectifier-Filter Card
TLP-04

Rectifier and filter card for building a CNC power supply around your own transformer, 8000 uF at 63 V.

63 V capacitor voltage rating 8000 uF bulk capacitance 8 × 1000 uF low ESR capacitors
₹1,100 Own design
TLP-05 100V Rectifier-Filter Card, bulk capacitance 8000 uF
TLP-05 100V Rectifier-Filter Card
TLP-05

Rectifier and filter card for building a CNC power supply around your own transformer, 8000 uF at 100 V.

100 V capacitor voltage rating 8000 uF bulk capacitance 8 × 1000 uF low ESR capacitors
₹1,300 Own design

Two voltage classes: the TLP-04 (63V) suits a 24-48V drive bus, the TLP-05 (100V) a 60-80V bus. Both carry 8000 uF of bulk capacitance (8 x 1000 uF low-ESR capacitors) to absorb a stepper drive's regenerative current during deceleration — more headroom than a switch-mode supply typically offers. Pair with a step-down transformer sized to the same voltage class.
