6 products

2-Phase Easy Servo Drive

Closed-loop stepper drives with encoder feedback, plus their matching encoder and power cables.

Need selection help?

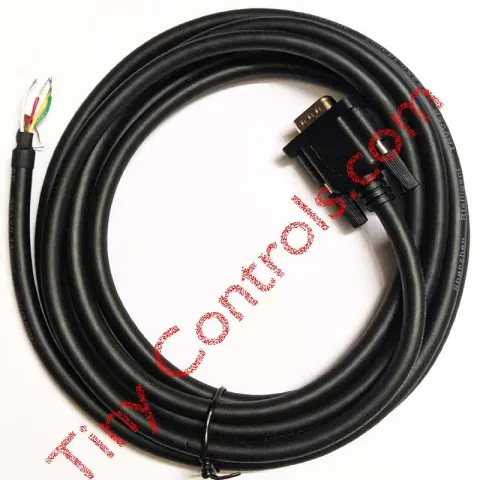

Encoder cable, 3 meter

EC1-030

Encoder cable, 3 meter, for connecting a closed-loop stepper motor's encoder to its drive.

3 meter length

₹700 In stock

Encoder cable, 8 meter

EC1-080

Encoder cable, 8 meter, for connecting a closed-loop stepper motor's encoder to its drive.

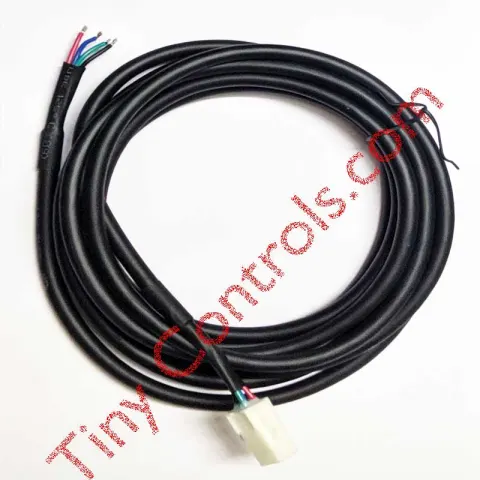

Power cable, 3 meter, for connecting a closed-loop stepper drive's output to the motor.

Power cable, 8 meter, for connecting a closed-loop stepper drive's output to the motor.

8 meter length

₹1,600 In stock

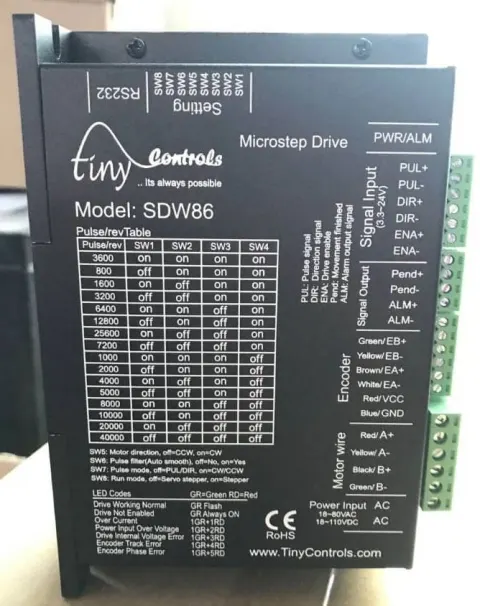

Stepper drive, close loop, 2 phase 24~100VDC/18~80VAC, for 86mm motor

SDW86 DRIVE

Closed-loop stepper drive, 24-100 V DC or 20-80 V AC, for 86mm frame motors, 4000 pulse/rev encoder feedback.

24 - 100 V DC \ 18 - 80 V AC supply voltage 4000 pulse/rev encoder resolution up to 4000 rpm speed range

₹7,000 In stock

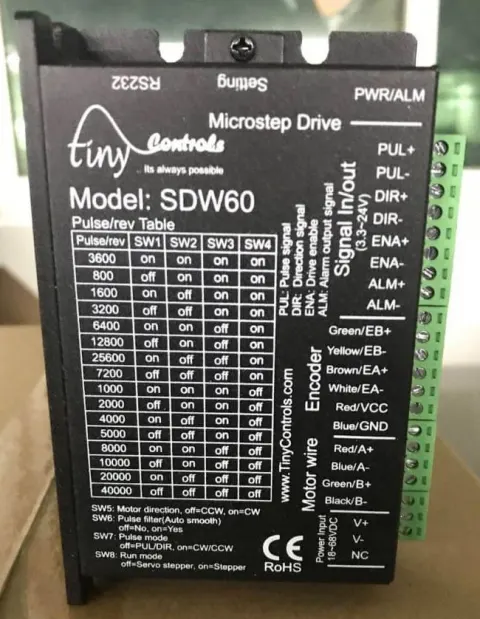

Stepper drive, close loop, 2 phase 24~50VDC, for 57/60mm motor

SDW60 DRIVE

Closed-loop stepper drive, 24-50 V DC, for 57/60mm frame motors, 4000 pulse/rev encoder feedback.

24 - 50 V DC supply voltage 4000 pulse/rev encoder resolution up to 4000 rpm speed range

₹6,000 In stock

The SDW60 (57/60mm motor frames) and SDW86 (86mm frames) read a 4000 pulse/rev encoder on the motor shaft and correct the pulse train if the motor falls behind — a sudden load spike shows up as a brief correction instead of a silently lost step. Both need a matching closed-loop motor with the encoder already fitted (this catalogue's ME260/ME286 series) plus separate encoder and power cables (EC1-030/080, PC1-030/080), sold apart from both drive and motor.
