Tstep-087
Two-phase stepper drive, 18-80 V DC, 1.2-7.0 A jumper selectable, with fixed 10-microstep resolution.
- Supply voltage
- 18 - 80 V DC
- Output current
- 1.2 - 7.0 A
- Microstepping
- 10 Microsteps
₹5,200
Own design
47 products
Stepper & Servo
Open-loop and closed-loop stepper motors and drives, two-phase and three-phase, from NEMA 17 to NEMA 42.
Tstep-087-485
Two-phase stepper drive with an RS-485 interface, 18-80 V DC, 1.2-7.0 A, running online or offline.
- Supply voltage
- 18 - 80 V DC
- Output current
- 1.2 - 7.0 A
- Interface
- RS-485
₹6,100
Own design
Tstep-087X
Two-phase stepper drive for 18-80 V DC supplies, with output current jumper-selectable from 1.2 A to 7.0 A.
- Supply voltage
- 18 - 80 V DC
- Output current
- 1.2 - 7.0 A
- Microstepping
- 4, 5, 8, 10, 16, 20, 32, 40
₹5,400
Own design
Tstep-117X
Two-phase stepper drive for 18-110 V DC or 18-80 V AC supplies, with output current DIP-selectable from 1.2 A to 7.0 A.
- Supply voltage
- 18 - 110 V DC \ 18 - 80 V AC
- Output current
- 1.2 - 7.0 A
- Microstepping
- 4, 5, 8, 10, 16, 20, 32, 40
₹6,000
Own design
Tstep-168X
Two-phase stepper drive for 24-160 V DC or 18-110 V AC supplies, with output current jumper-selectable from 1.2 A to 8.0 A.
- Supply voltage
- 24 - 160 V DC \ 18 - 110 V AC
- Output current
- 1.2 - 8.0 A
- Microstepping
- 4, 5, 8, 10, 16, 20, 32
₹8,000
Own design
Tstep-484
Compact two-phase stepper drive, 18-48 V, 0.7-4.0 A jumper selectable, with microstepping.
- Supply voltage
- 18 - 48 V
- Output current
- 0.7 - 4.0 A
- Microstepping
- Yes
₹3,400
Own design

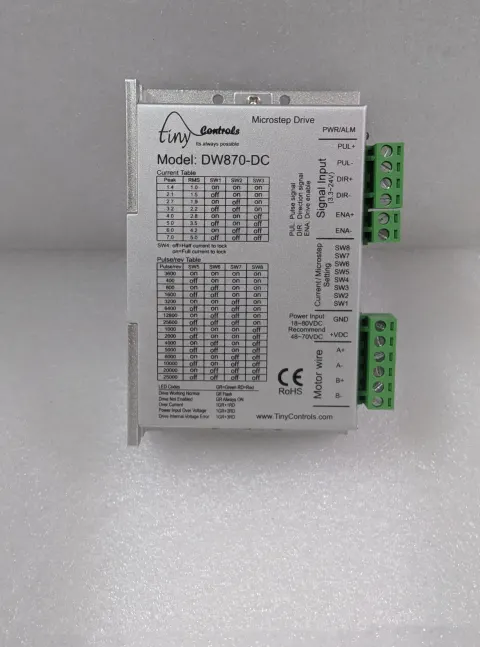

DW870-DC
Two-phase stepper drive, 18-80 V, output current dip-switch selectable from 1.4 A to 7.0 A.
- Rated Voltage
- 18-80 V
- Rated Current
- 1.4 - 7.0 A
- Microstepping
- YES
₹5,400
In stock
EC1-030
Encoder cable, 3 meter, for connecting a closed-loop stepper motor's encoder to its drive.
- Length
- 3 meter
₹900
In stock
EC1-080
Encoder cable, 8 meter, for connecting a closed-loop stepper motor's encoder to its drive.
- Length
- 8 meter
₹2,000
In stock
M2864T045-14
NEMA 34 stepper motor, 86mm flange, 4.5 Nm / 45.9 kg-cm holding torque, 4 leads, 14mm keyed shaft.
- Flange size
- 86 mm (NEMA 34)
- Holding torque
- 4.5 Nm \ 45.89 kg-cm
₹4,600
In stock

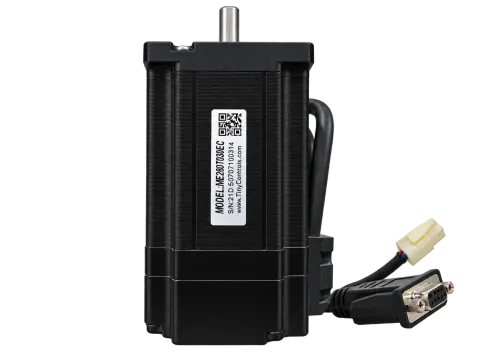

ME260T030EC
Closed-loop stepper motor, 60mm flange, 5.0 A/phase, 3.0 Nm / 30.6 kg-cm holding torque, built-in encoder.
- Flange size
- 60 mm (NEMA 24)
- Phase current
- 5.0 A
- Holding torque
- 3.0 Nm \ 30.59 kg-cm
₹5,000
In stock

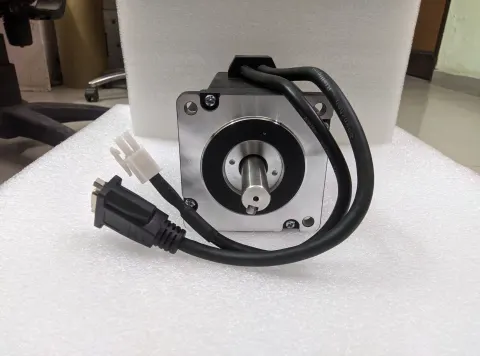

ME286T040EC
Closed-loop stepper motor, 86mm flange, 4.2 A/phase, 4.5 Nm / 45.9 kg-cm holding torque, built-in encoder.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 4.2 A
- Holding torque
- 4.5 Nm \ 45.89 kg-cm
₹5,800
In stock
ME286T080EC
Closed-loop stepper motor, 86mm flange, 4.9 A/phase, 8.5 Nm / 86.7 kg-cm holding torque, built-in encoder.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 4.9 A
- Holding torque
- 8.5 Nm \ 86.68 kg-cm
₹7,800
In stock

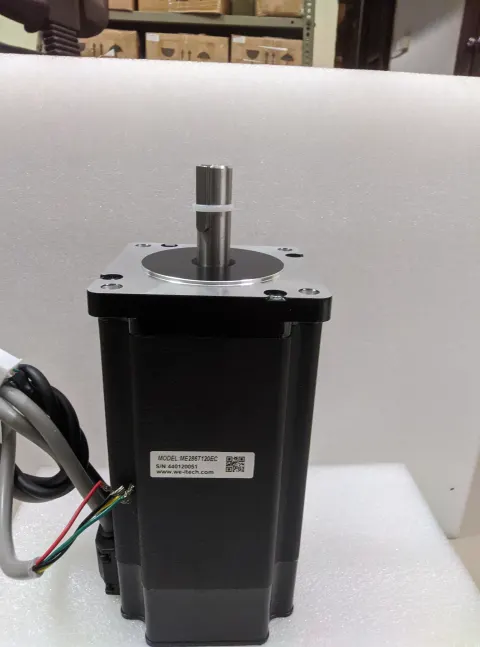

ME286T120EC
Closed-loop stepper motor, 86mm flange, 6.0 A/phase, 12 Nm / 122.4 kg-cm holding torque, built-in encoder.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 6.0 A
- Holding torque
- 12 Nm \ 122.37 kg-cm
₹9,800
In stock
PC1-030
Power cable, 3 meter, for connecting a closed-loop stepper drive's output to the motor.
- Length
- 3 meter
₹900
In stock
PC1-080
Power cable, 8 meter, for connecting a closed-loop stepper drive's output to the motor.
- Length
- 8 meter
₹2,000
In stock

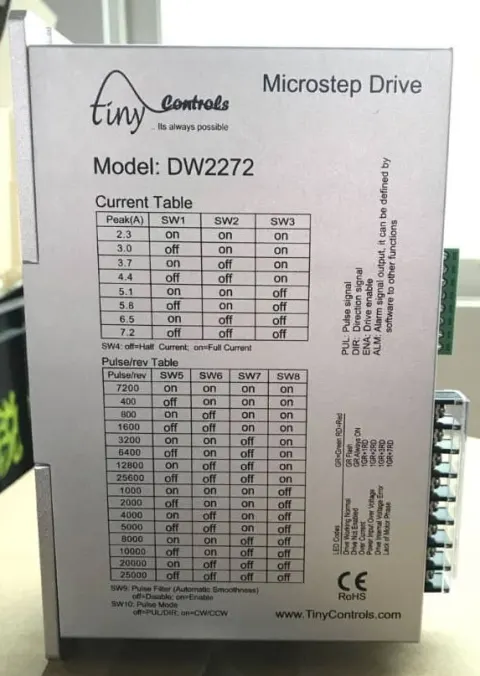

DW2272
Two-phase stepper drive, mains AC input 110-230 VAC, output current 2.3-7.2 A.
- Supply voltage
- 110 - 230 V AC
- Output current
- 2.3 - 7.2 A
₹9,200
In stock

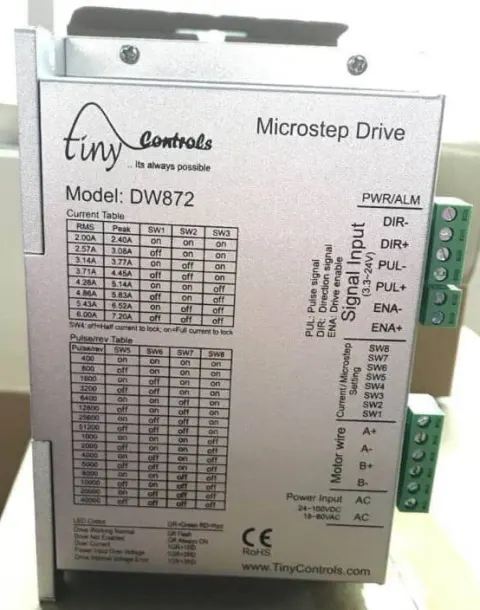

DW872
Two-phase stepper drive, universal input 24-100 V DC or 18-80 V AC, output current 2.4-7.2 A.
- Supply voltage
- 24 - 100 V DC \ 18 - 80 V AC
- Output current
- 2.4 - 7.2 A
₹5,900
In stock
DW3880
Three-phase stepper drive, 24-100 V DC or 18-80 V AC input, output current 1.4-8.0 A.
- Supply voltage
- 24 - 100 V DC \ 18 - 80 V AC
- Output current
- 1.4 - 8.0 A
₹7,000
In stock

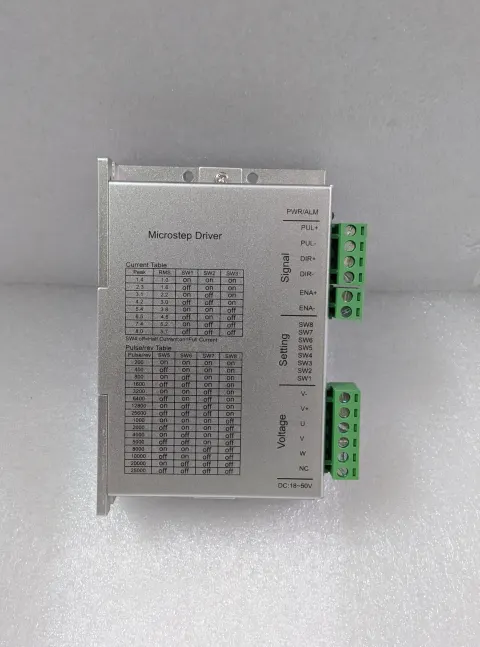

DW3580
Three-phase stepper drive, 24-50 V DC input, output current 1.4-8 A.
- Supply voltage
- 24 - 50 V DC
- Output current
- 1.4 - 8 A
₹4,200
In stock

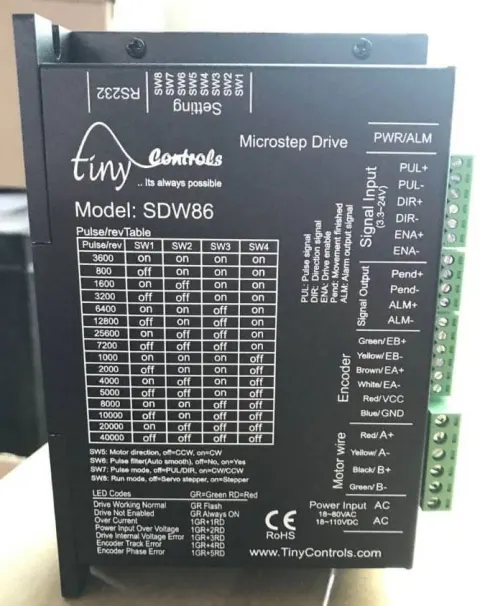

SDW86 DRIVE
Closed-loop stepper drive, 24-100 V DC or 20-80 V AC, for 86mm frame motors, 4000 pulse/rev encoder feedback.
- Supply voltage
- 24 - 100 V DC \ 18 - 80 V AC
- Encoder resolution
- 4000 pulse/rev
- Speed range
- up to 4000 rpm
₹7,000
In stock

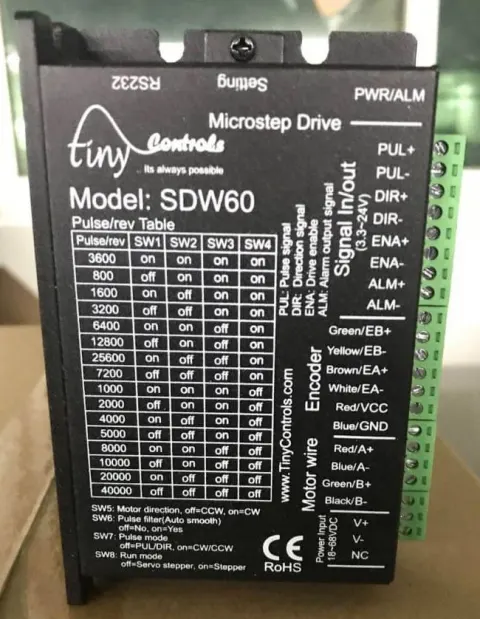

SDW60 DRIVE
Closed-loop stepper drive, 24-50 V DC, for 57/60mm frame motors, 4000 pulse/rev encoder feedback.
- Supply voltage
- 24 - 50 V DC
- Encoder resolution
- 4000 pulse/rev
- Speed range
- up to 4000 rpm
₹6,000
In stock

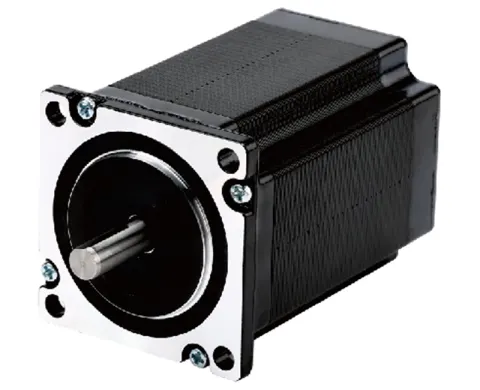

M2574T013-6.35
NEMA 23 stepper motor, 57mm flange, 2.8 A/phase, 1.3 Nm / 13.3 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.3 Nm \ 13.26 kg-cm
₹1,600
In stock
M2574T022-8
NEMA 23 stepper motor, 57mm flange, 4 A/phase, 2.2 Nm / 22.4 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 4.0 A
- Holding torque
- 2.2 Nm \ 22.43 kg-cm
₹2,400
In stock
M2574T030-8
NEMA 23 stepper motor, 57mm flange, 5.0 A/phase, 3.0 Nm / 30.6 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 5.0 A
- Holding torque
- 3.0 Nm \ 30.59 kg-cm
₹3,800
In stock
M3576T015-8
Three-phase stepper motor, 57mm flange, 3 A/phase, 1.4 Nm / 14.3 kg-cm holding torque, 1.2 degree step angle.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 3 A
- Holding torque
- 1.4 Nm \ 14.28 kg-cm
₹2,600
In stock
M2868T035-14
NEMA 34 stepper motor, 86mm flange, 2.8 A/phase, 3.5 Nm / 35.7 kg-cm holding torque, 8 leads.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 2.8 A
- Holding torque
- 3.5 Nm \ 35.69 kg-cm
₹4,200
In stock
M2864T065-14
NEMA 34 stepper motor, 86mm flange, 4.6 A/phase, 6.5 Nm / 66.3 kg-cm holding torque, 4 leads, 14mm keyed shaft.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 4.6 A
- Holding torque
- 6.5 Nm \ 66.28 kg-cm
₹5,200
In stock
M2868T085-14
NEMA 34 stepper motor, 86mm flange, 4.9 A/phase, 8.5 Nm / 86.7 kg-cm holding torque, 8 leads.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 4.9 A
- Holding torque
- 8.5 Nm \ 86.68 kg-cm
₹6,200
In stock
T110H150-6504
NEMA 42 hybrid stepper motor, 6.5 A/phase, 19 Nm / 193.7 kg-cm holding torque, 4 leads.
- Phase Current
- 6.5 A
- Holding torque
- 19 Nm \ 193.75 kg-cm
- Lead wires
- 4
₹15,200
In stock
T42H38-1206
NEMA 17 stepper motor, 38mm body, 1.2 A/phase, 0.25 Nm / 2.5 kg-cm holding torque, 6 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.2 A
- Holding torque
- 0.25 Nm \ 2.5 kg-cm
₹850
In stock
T42H38-1684
NEMA 17 stepper motor, 38mm body, 1.68 A/phase, 0.35 Nm / 3.6 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.68 A
- Holding torque
- 0.35 Nm \ 3.6 kg-cm
₹800
In stock
T42H47-1504
NEMA 17 stepper motor, 47mm body, 1.5 A/phase, 0.54 Nm / 5.5 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.5 A
- Holding torque
- 0.54 Nm \ 5.5 kg-cm
₹1,000
In stock
T42H47-1684
NEMA 17 stepper motor, 47mm body, 1.68 A/phase, 0.43 Nm / 4.4 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.68 A
- Holding torque
- 0.43 Nm \ 4.4 kg-cm
₹850
In stock
T42H47-1684B
NEMA 17 dual-shaft stepper motor, 47mm body, 1.68 A/phase, 0.43 Nm / 4.4 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.68 A
- Holding torque
- 0.43 Nm \ 4.4 kg-cm
₹1,000
In stock
T57H111-4004
NEMA 23 high-torque stepper motor, 111mm body, 4.4 A/phase, 3.14 Nm / 32.0 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 4.4 A
- Holding torque
- 3.14 Nm \ 32 kg-cm
₹3,500
In stock
T57H51-2804
NEMA 23 stepper motor, 51mm body, 2.8 A/phase, 0.99 Nm / 10.1 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 0.99 Nm \ 10.1 kg-cm
₹1,400
In stock
T57H56-2804
NEMA 23 stepper motor, 56mm body, 2.8 A/phase, 1.24 Nm / 12.6 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.24 Nm \ 12.6 kg-cm
₹1,600
In stock
T57H56-2804B
NEMA 23 stepper motor, 56mm body, 2.8 A/phase, 1.24 Nm / 12.6 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.24 Nm \ 12.6 kg-cm
₹1,650
In stock
T57H76-2804
NEMA 23 stepper motor, 76mm body, 2.8 A/phase, 1.85 Nm / 18.9 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.85 Nm \ 18.9 kg-cm
₹2,000
In stock

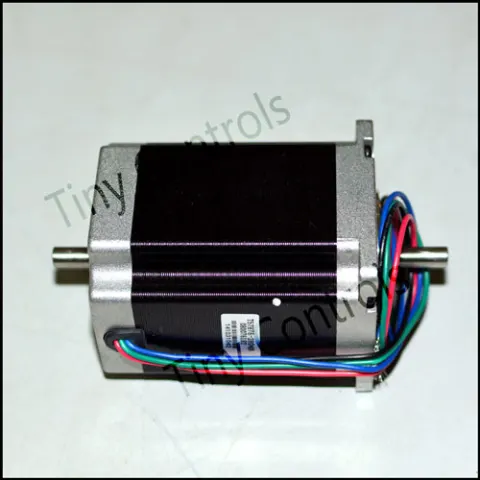

T57H76-2804B
NEMA 23 stepper motor, 76mm body, 2.8 A/phase, 1.85 Nm / 18.9 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.85 Nm \ 18.9 kg-cm
₹2,050
In stock
T85H118-4208
NEMA 34 stepper motor, 118mm body, 4.2 A/phase, 8.53 Nm / 87.0 kg-cm holding torque, 8 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 4.2 A
- Holding torque
- 8.53 Nm \ 87 kg-cm
₹6,200
In stock
T85H156-6204
NEMA 34 stepper motor, 156mm body, 6.2 A/phase, 12.2 Nm / 124.0 kg-cm holding torque, 4 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 6.2 A
- Holding torque
- 12.16 Nm \ 124 kg-cm
₹8,500
In stock
T85H65-2808
NEMA 34 bipolar stepper motor, 65mm body, 2.8 A/phase, 3.33 Nm / 34.0 kg-cm holding torque, 8 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 2.8 A
- Holding torque
- 3.33 Nm \ 34 kg-cm
₹4,200
In stock
T85H80-4208
NEMA 34 stepper motor, 80mm body, 4.2 A/phase, 4.51 Nm / 46.0 kg-cm holding torque, 8 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 4.2 A
- Holding torque
- 4.51 Nm \ 46 kg-cm
₹4,600
In stock
T85H90-5504
NEMA 34 stepper motor, 90mm body, 5.5 A/phase, 5.88 Nm / 60.0 kg-cm holding torque, 4 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 5.5 A
- Holding torque
- 5.88 Nm \ 60 kg-cm
₹5,000
In stock

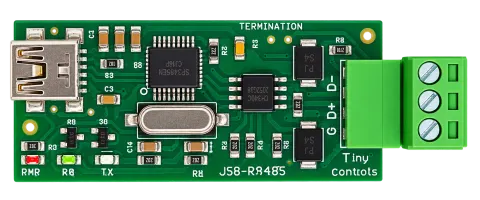

TUSB-485
USB to RS-485 interface dongle, for connecting an RS-485 device to a PC's USB port.
- Interface
- USB to RS-485
₹400
In stock
