3 products

Interface Cards

RS-485 and analog interface cards for tying a controller's outputs into VFDs, relays and PC-based control software.

Need selection help?

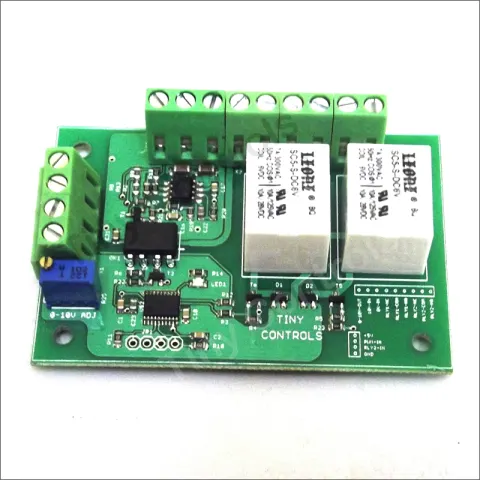

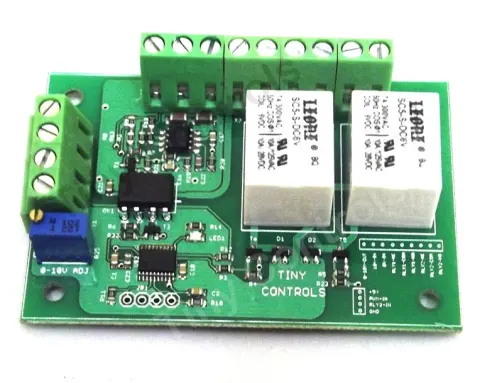

PWM to 0-10V (TSR1), interface card
PWM to 0-10V (TSR1)
TSR1-v1

Isolated PWM to 0-10 V converter with adjustable output and two on-board relays, for spindle speed control.

5 V DC board power supply 10 V DC isolated analog power supply 2 On Board relays
₹1,400 Own design
TIO-0808 RS-485 Module (Digital and Analog Interface Card)
TIO-0808 RS-485 Module (Digital and Analog Interface Card)
TIO-0808

RS-485 I/O interface card with 8 opto-isolated digital inputs, 6 relay-driving outputs, an isolated 0-10V analog output and a variable PWM output, for building a multi-node automation bus.

24 V DC supply voltage 8 DI, 1 Motor, 2 Relay, 4 OC inputs & outputs RS-485 Modbus interface
₹2,200 Own design
TUSB-485 USB to RS-485 Dongle, stepper drive
TUSB-485 : USB to RS-485 Dongle
TUSB-485

USB to RS-485 interface dongle, for connecting an RS-485 device to a PC's USB port.

USB to RS-485 interface
₹400 In stock

Three own-designed and supplied interface products: the TSR1 converts a PWM speed signal to an isolated 0-10V reference for a VFD; the TIO-0808 is a general-purpose RS-485 I/O card with 8 opto-isolated inputs and 6 relay-driving outputs for building a multi-node automation bus; and the TUSB-485 adapts a PC's USB port to RS-485 for talking to either of them, or to any other Modbus/USS device in this catalogue.
