1 product

3-Phase Stepper Motor

The catalogue's only three-phase stepper motor, for finer low-speed resolution than a two-phase motor at the same frame size.

Need selection help?

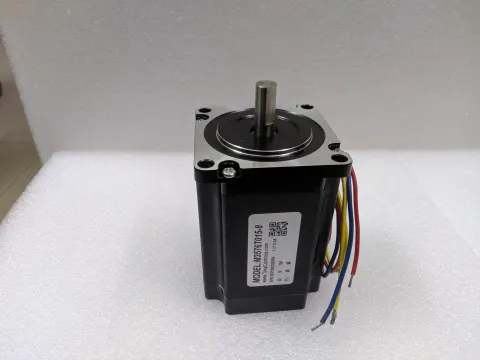

M3576T015-8 three-phase stepper motor, NEMA 23 57mm flange, six lead wires — additional view

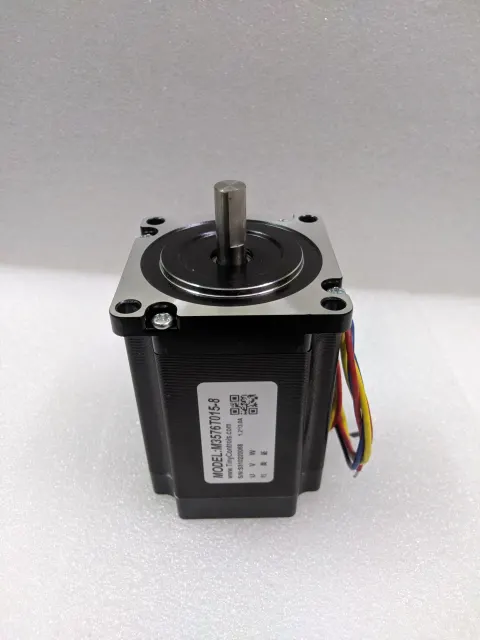

Stepper motor, 57mm flange(NEMA23), 3 phase, 3A, 1.4Nm, 6 leads
M3576T015-8

Three-phase stepper motor, 57mm flange, 3 A/phase, 1.4 Nm / 14.3 kg-cm holding torque, 1.2 degree step angle.

57 mm (NEMA 23) flange size 3 A phase current 1.4 Nm \ 14.28 kg-cm holding torque
₹2,000 In stock

The M3576T015-8 is a 57mm-flange (NEMA 23) three-phase motor, 3A/phase, 1.4 Nm / 14.3 kg-cm holding torque, 1.2 degree step angle — finer than the 1.8 degrees typical of a two-phase motor this size, at the cost of needing a three-phase-specific drive (this catalogue's DW3580 or DW3880) rather than the wider range of two-phase drives elsewhere.
