6 products

Single Axis Controllers

Single-axis pulse generators and indexing controllers for driving one stepper or servo axis independently.

Need selection help?
TNC-G00 : Programmable Motor Controller
TNC-G00 : Programmable Motor Controller
TNC-G00

Single-axis programmable motor controller with a 32-bit processor, two opto-isolated inputs and three outputs.

1 axes 32 bit processor 20 × 4 character LCD display
₹8,000 Own design
TS-01 300W 48V DC Spindle ER11
TNC-G01 : Programmable Indexing (Rotary Table) Controller
TNC-G01

Single-axis programmable indexing controller for rotary tables, with two opto-isolated inputs and three outputs.

1 axes 16 bit processor 20 × 4 character LCD display
₹8,000 Own design
TNC-G09 : Drill Cycle Controller
TNC-G09 : Drill Cycle Controller
TNC-G09

Single-axis drill cycle controller with four timed 24 V relay outputs and differential step outputs.

1 axes 32 bit ARM processor 20 × 4 character LCD display
₹8,000 Own design

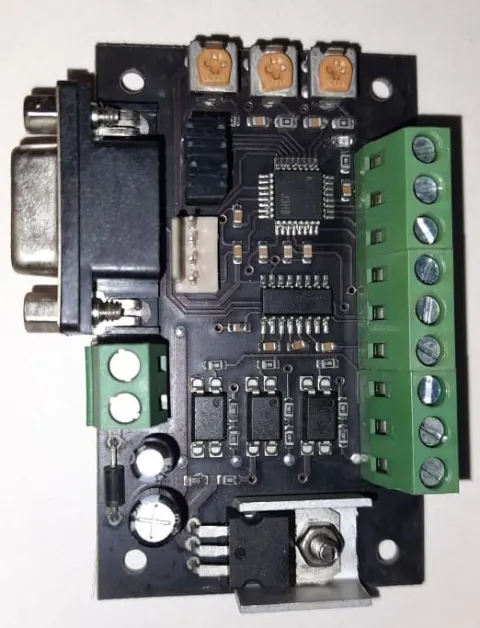

TNC-G11 RS-232 programmable Single Axis Motion Controller
TNC-G11 RS-232 programmable Single Axis Motion Controller
TNC-G11

Single-axis pulse generator for stepper or servo drives with an RS-232 interface — commands run live over serial or from a sequence stored to flash — plus jumper-set manual modes.

40 kHz max step frequency 8 - 24 V DC supply voltage 3.5 W max power consumption
₹1,200 Own design
TNC-G12 Stepper Motor Pulse Generator, single-axis motion controller
TNC-G12 : Stepper Motor Pulse Generator
TNC-G12

Standalone single-axis pulse generator for a stepper or servo drive, set entirely by jumpers for four manual modes and four step-rate ranges to 40 kHz, with differential outputs.

40 kHz max step frequency 8 - 24 V DC supply voltage 2.5 W max power consumption
₹1,200 Own design

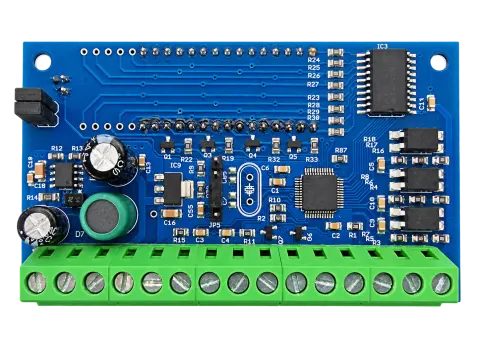

TNC-G12D Stepper Motor Pulse Generator, single-axis motion controller
TNC-G12D Stepper Motor Pulse Generator
TNC-G12D

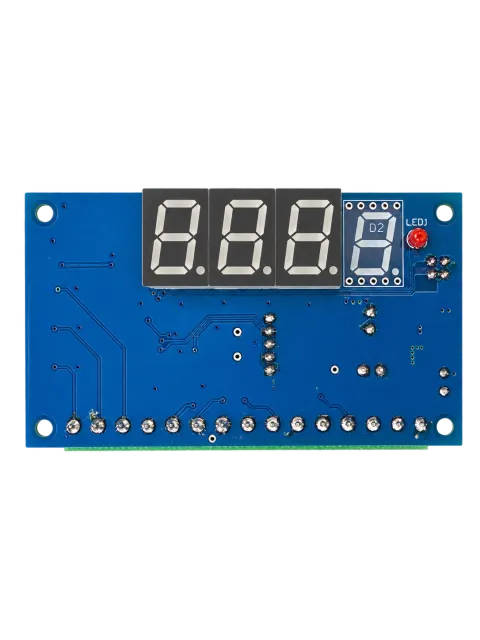

Standalone single-axis pulse generator with a frequency display and external speed/acceleration potentiometers, jumper-set for four manual modes, generating step pulses to 60 kHz.

60 kHz max step frequency 8 - 24 V DC supply voltage 2.5 W max power consumption
₹1,400 Own design

Six controllers from a basic 40 kHz pulse generator (TNC-G11, TNC-G12) up to a 60 kHz version (TNC-G12D) and dedicated indexing/drilling controllers (TNC-G00, TNC-G01, TNC-G09) with their own keypad and LCD display for standalone operation. All are designed and built by Tiny Controls in India.
