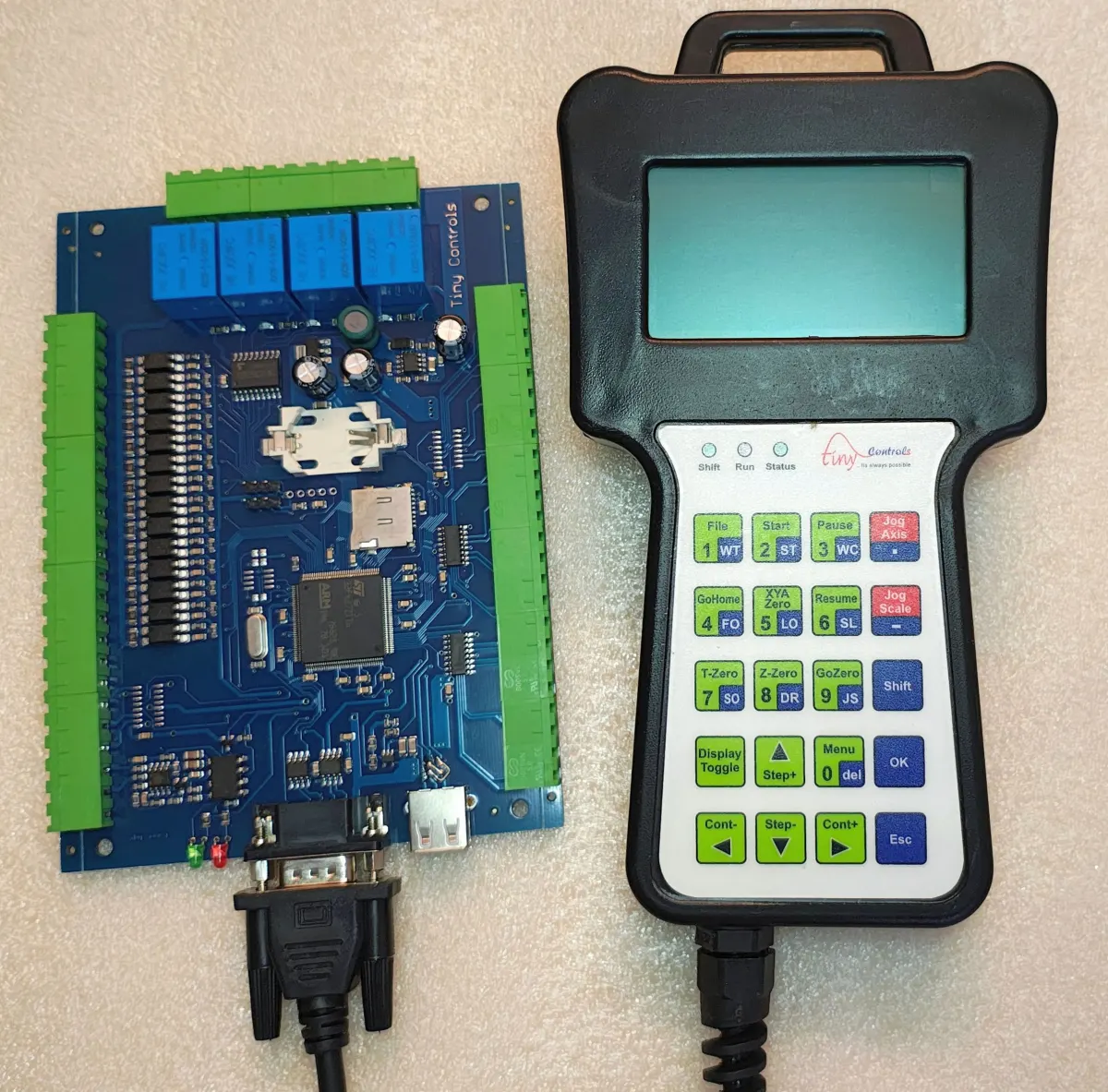

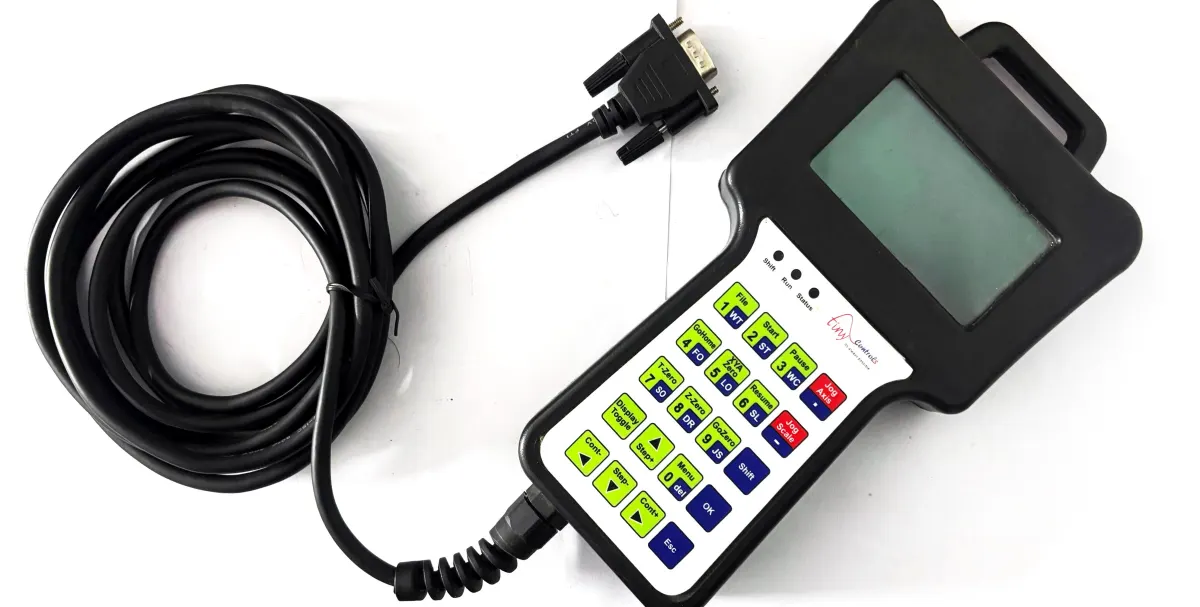

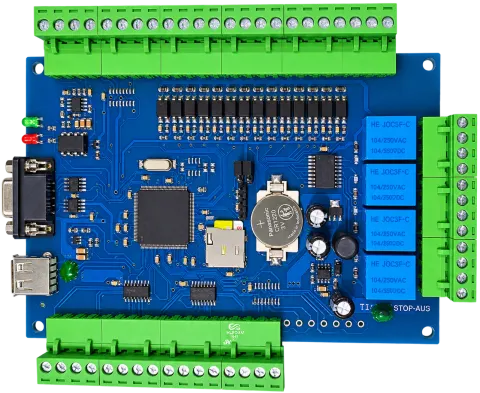

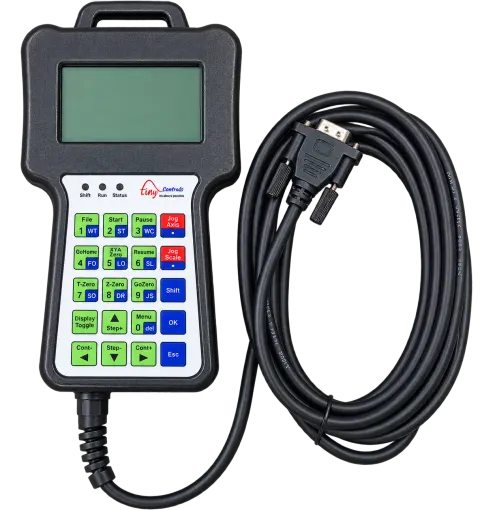

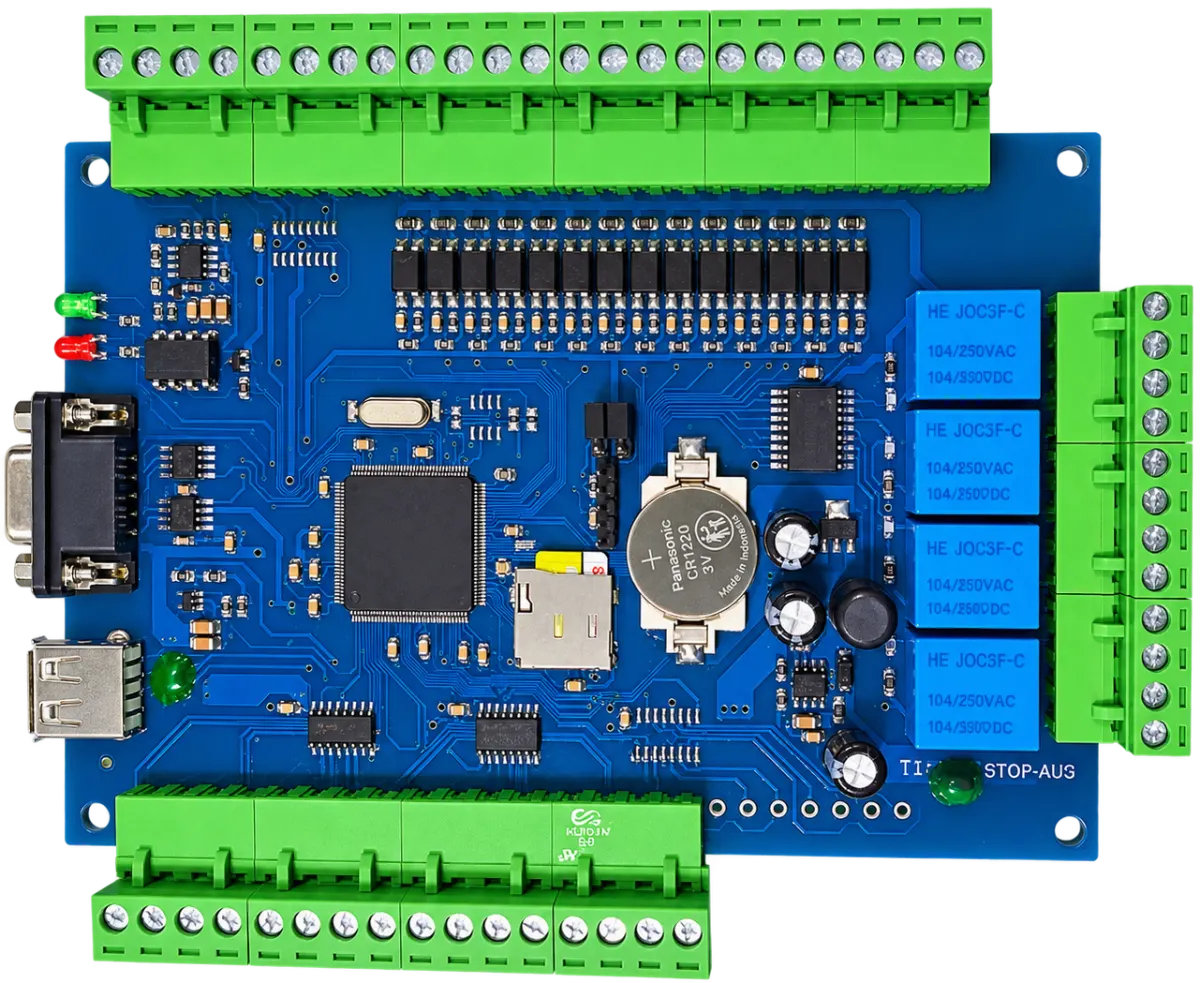

TNC-M24 : 4 Axes CNC Controller
Four-axis G-code controller with step and direction outputs, three linear axes plus a configurable rotary fourth.
Overview
The TNC-M24 provides four-axis G-code control for machines that do not need the larger controllers in the range.
X, Y and Z are linear and the fourth axis is rotary, configurable as A, B or C. All four axes take independent maximum velocity and acceleration figures, so a light rotary axis is not held back by the settings a heavy gantry needs.
Output is step and direction, which connects directly to stepper and digital servo drives without a breakout board. The program is executed by the controller itself, so nothing has to keep running on a PC next to the machine.
Designed and built by Tiny Controls in India.
Specifications
| Axes | 4 |
|---|---|
| Output type | Step and direction |
| Programming | G-code |
| Linear axes | 3 X, Y, Z |
| Rotary axis | 1 configurable A, B or C |
Downloads
Questions
How does the TNC-M24 differ from the TNC-M04?
Both are four-axis G-code controllers. The product records do not state what separates them, and the price differs — ask us which suits your machine before ordering.
Does it drive servo drives as well as steppers?
Yes, provided the drive accepts step and direction pulses, which digital servo drives generally do.
