DEL-2122 (17.5V / 8.5Amp)
Step-down transformer, 220 V AC to 17.5 V AC secondary at 8.5 A, 149 VA, for building a linear stepper supply.
Overview

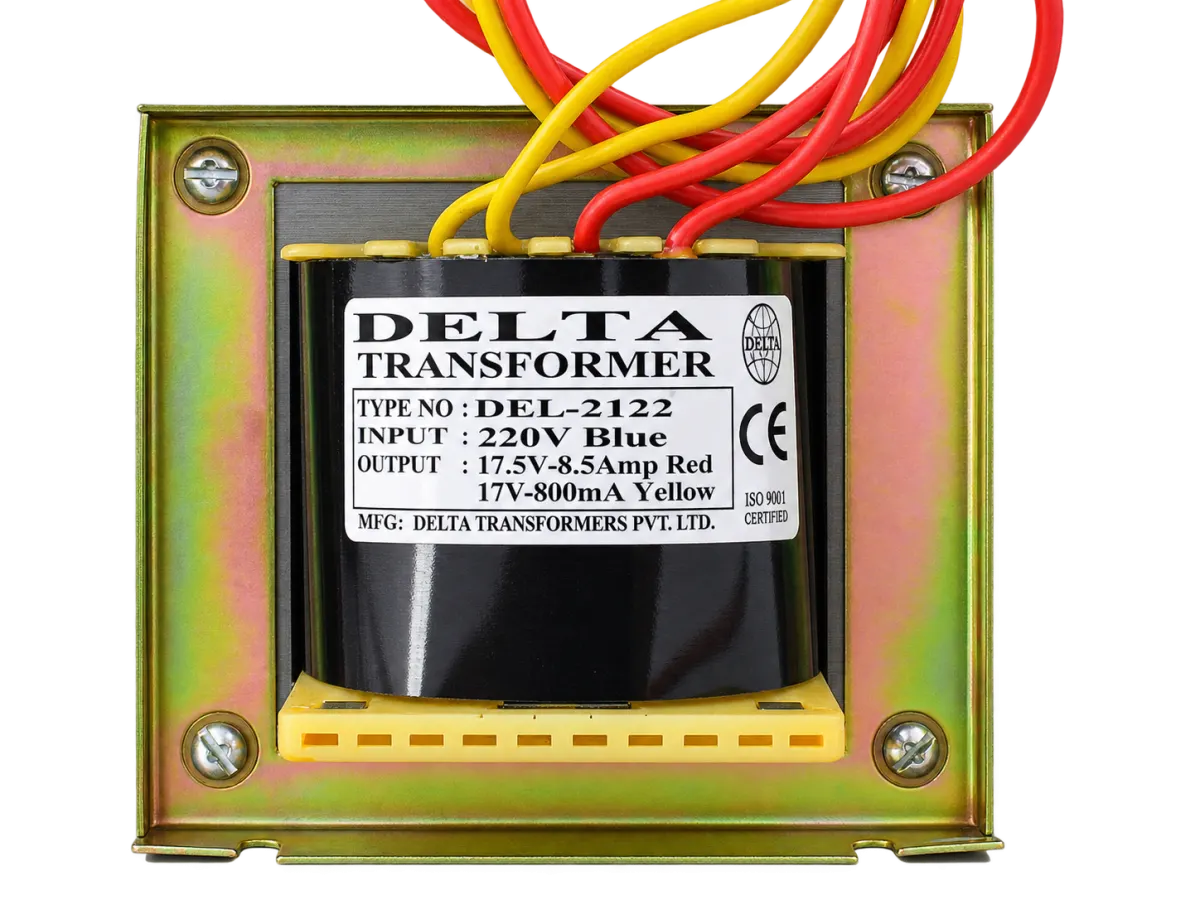

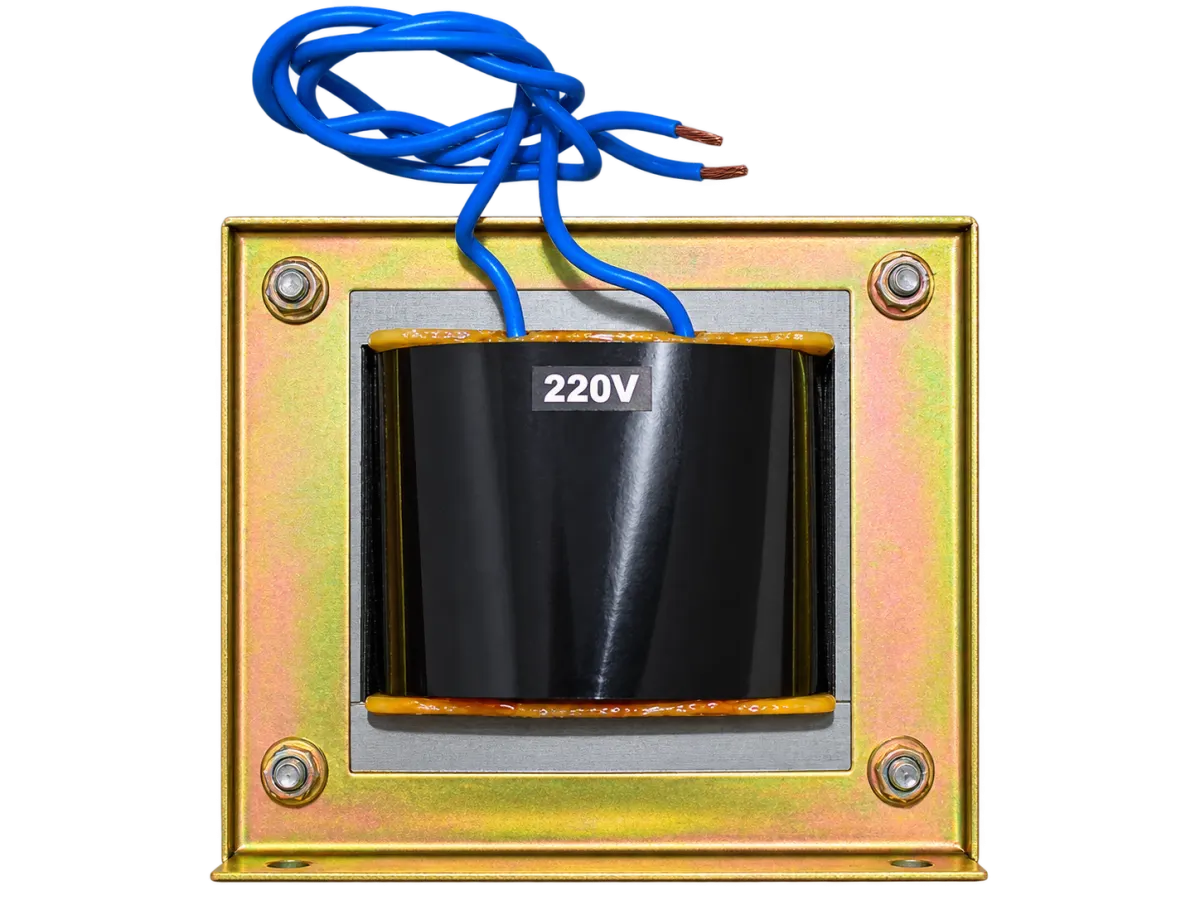

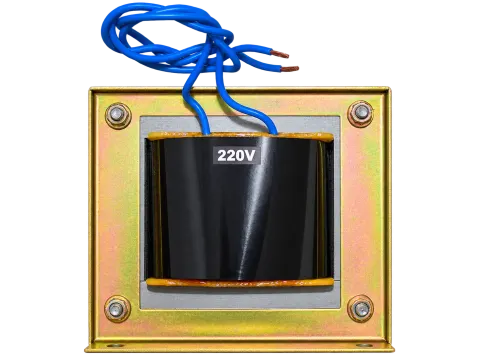

The DEL-2122 is a step-down transformer, taking 220 V AC mains and delivering a 17.5 V AC secondary at up to 8.5 A, roughly 149 VA - the lowest secondary voltage in this range.
On its own it only steps the voltage down - it has no rectifier or filter capacitor, so it can't power a DC stepper drive by itself. Paired with the TLP-04 rectifier and filter card, this becomes a complete linear power supply: the transformer sets the voltage and current capacity, the TLP-04 rectifies it and supplies the bulk capacitance a stepper system draws on during acceleration. At 17.5 V this sits below the TLP-04's stated 24-48 V range, which is not a safety problem - the card's 63 V capacitors have plenty of headroom at this voltage - but it does mean less voltage reaches the drive, and a stepper's usable torque falls away faster at speed on a lower rail.
For more voltage in a similar current range, the DEL-2031 and TD-19 in this range run 24 V and 30 V secondaries.
Supplied by Tiny Controls in India.
Specifications
| Secondary voltage | 17.5 V |
|---|---|
| Secondary current | 8.5 A |
Questions
This sits below the TLP-04's stated 24-48V range — is it actually safe to pair the two?
Yes, not a safety problem — the card's 63V-rated capacitors have plenty of headroom at 17.5V. It just means less voltage reaches the drive, not a compatibility issue.
Can this power a drive by itself?
No — it only steps the voltage down. There's no rectifier or filter capacitor, so it needs pairing with the TLP-04 to build a complete DC supply.
If I need more voltage at a similar current, what's available?
The DEL-2031 (24V) and TD-19 (30V) in this range run similar current ratings at higher voltage.
