TNC-G00 : Programmable Motor Controller
Single-axis programmable motor controller with a 32-bit processor, two opto-isolated inputs and three outputs.
Overview
The TNC-G00 is the general-purpose single-axis controller in the range: a programmed motion sequence, set up through menus, driving one axis.

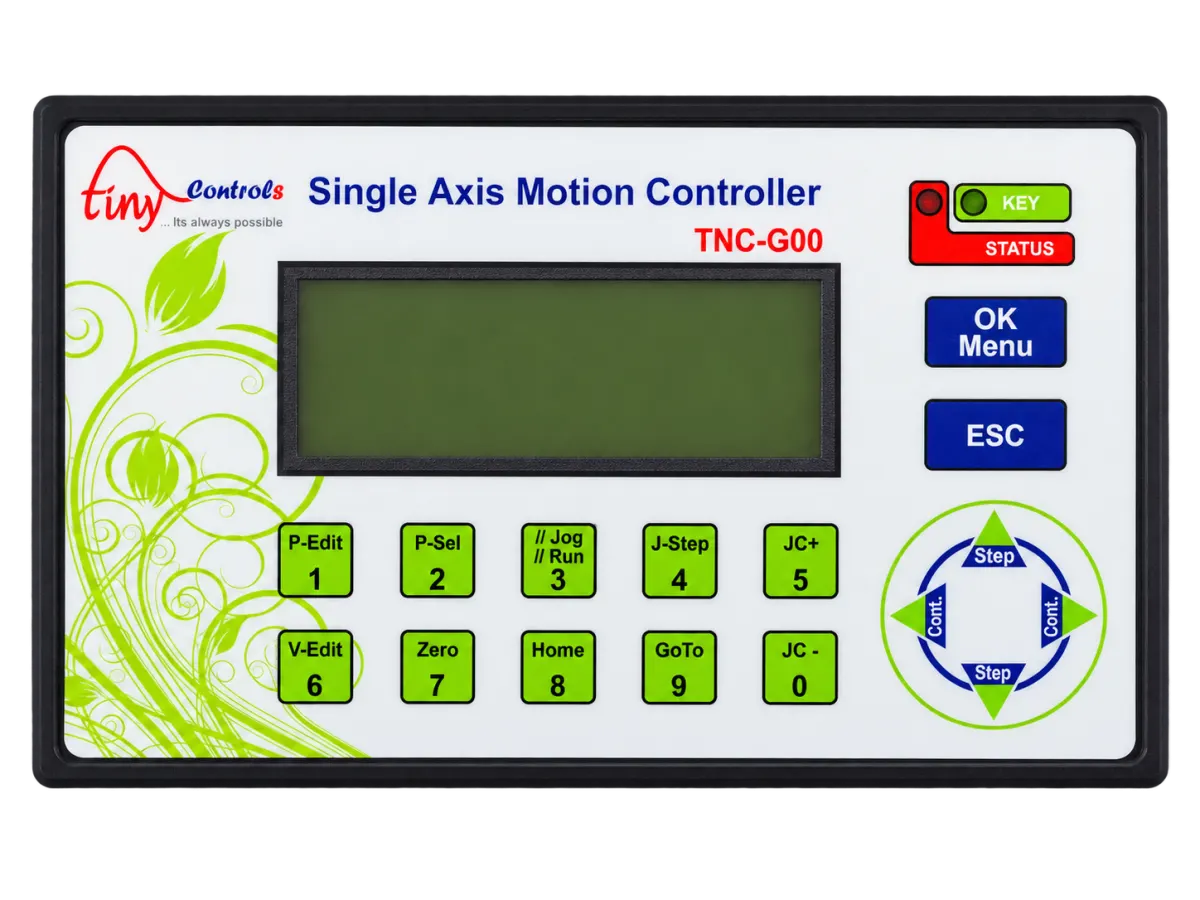

It runs a 32-bit processor and is configured through a 20 × 4 character LCD. Two opto-isolated pulse inputs keep external signalling electrically separate from the controller, and three output signals are available for coordinating the rest of the machine around the move.
Where the TNC-G01 is described specifically for rotary table indexing and the TNC-G09 for drill cycles, the G00 is not tied to one application — the right choice when the sequence is yours to define rather than one of the standard cycles.
Designed and built by Tiny Controls in India.
Specifications
| Axes | 1 |
|---|---|
| Processor | 32 bit |
| Display | 20 × 4 character LCD |
| Pulse inputs | 2 opto-isolated |
| Output signals | 3 |
| Supply voltage | 90 - 260 V AC |
Downloads
Questions
Which single-axis controller should I choose?
The G00 is general purpose. If you are indexing a rotary table, the TNC-G01 is described for that job; for drilling cycles with timed relay sequencing, the TNC-G09.
Does it drive the motor directly?
No. It commands a stepper or servo drive, which powers the motor.
