Tiny Controls · Own design

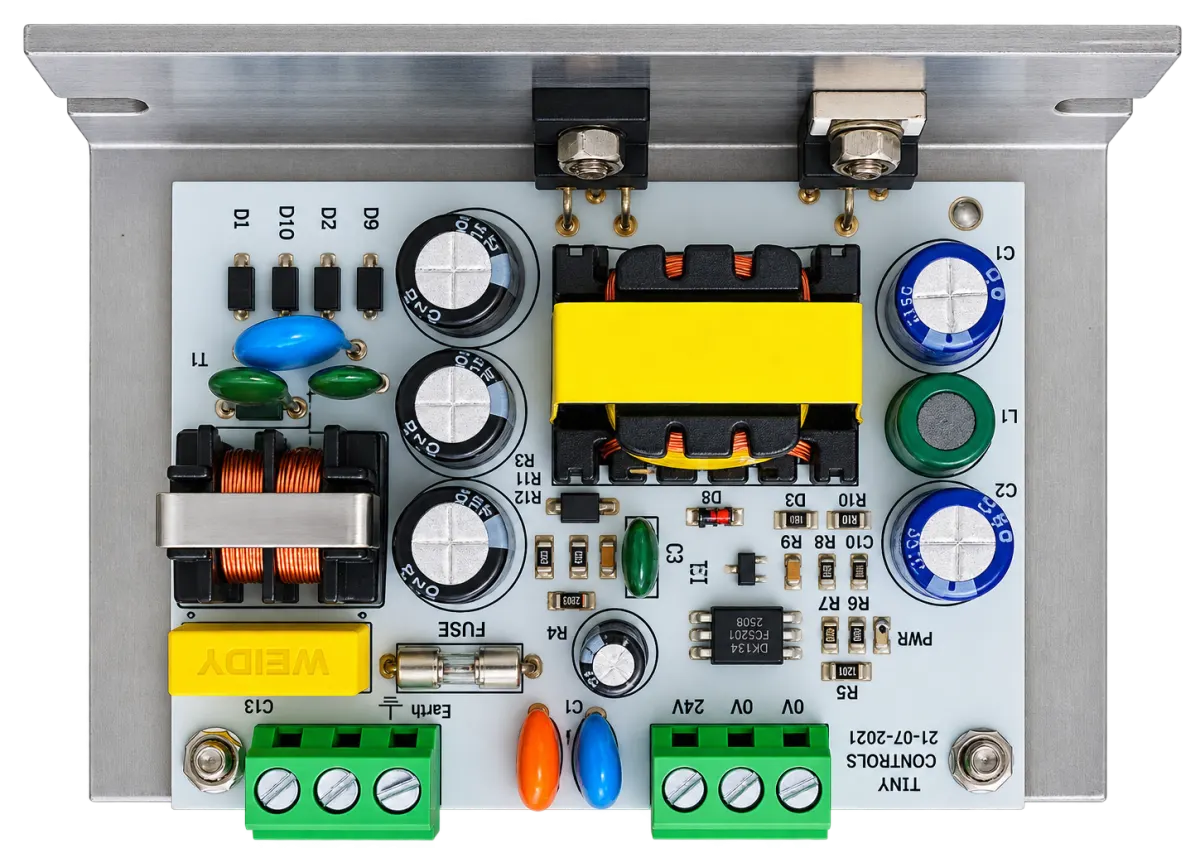

S-072-24 24V/3A SMPS
24 V 3 A switch-mode power supply, 72 W, for CNC control electronics and I/O.
Overview
A 24 V switch-mode supply rated at 3 A, giving 72 W.
This is a control supply, not a motor supply. Controllers, limit switches, relays, proximity sensors and I/O modules typically run at 24 V and draw modest current, and this covers that side of the panel comfortably.
Stepper drives are a different matter. They draw far more than 3 A during acceleration and generally want a higher rail than 24 V for torque at speed - so give them their own supply, sized to the motors. Trying to run both from one small supply produces a rail that dips whenever an axis starts, which shows up as unexplained faults rather than as an obvious power problem.
For a motor supply built around your own transformer, see the TLP-04 and TLP-05 rectifier and filter cards.
Supplied by Tiny Controls in India.
Specifications
| Output voltage | 24 V DC |
|---|---|
| Output current | 3 A |
| Output power | 72 W |
| Type | Switch-mode |
Questions
Can I run my stepper drives from this?
No. Stepper drives draw far more than 3 A during acceleration and usually want a higher voltage for torque at speed. Give them a separate supply sized to the motors.
What is it suitable for?
The control side of the panel: the controller, limit switches, relays, proximity sensors and I/O.
What is the input voltage?
The category is AC 220 V to DC, but the input range is not stated in our record. Please confirm with us if your supply is not standard 220 V mains.
