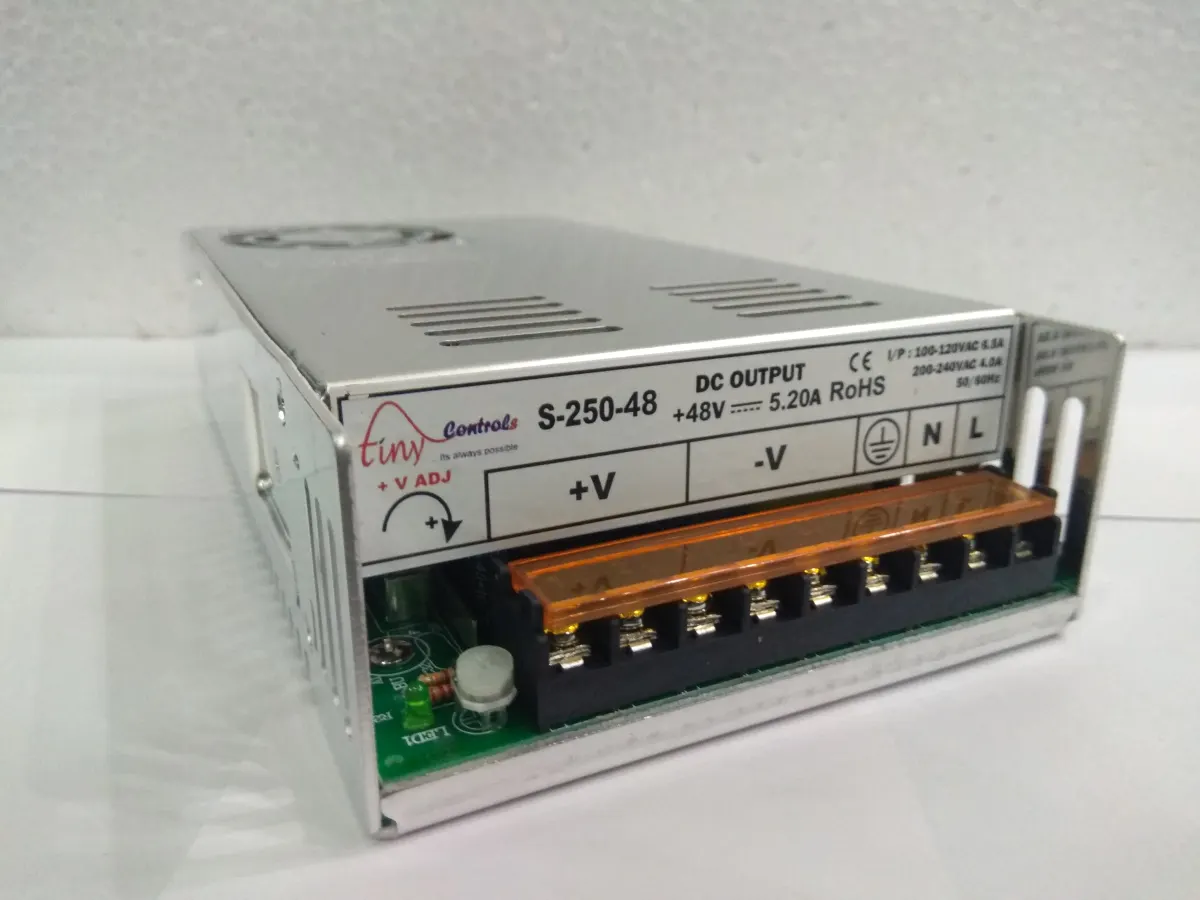

S-250-48 48V/5A SMPS
48 V 5 A switch-mode power supply, 250 W, 220 V AC input, for a stepper-drive DC bus.
Overview
The S-250-48 is a switch-mode power supply taking 220 V AC and delivering 48 V DC at up to 5 A, 250 W - the same power as the S-250-24, wound for a higher-voltage, lower-current output instead.
48 V reaches further into most stepper drive input ranges than 24 V does (the Tstep-087 and DW870-DC both run up to 80 V), which keeps torque up further into the speed range on the same motor, since a stepper's usable torque falls away as step rate rises and winding inductance limits how fast current can be re-established. 5 A covers the running current of a drive or two at this voltage, but a stepper drive's current draw spikes during acceleration - size the supply to the peak, not the average.
It also holds less bulk capacitance than a linear supply built around a transformer, which matters for absorbing a drive's regenerative current on deceleration; where that's a concern, the TLP-04/TLP-05 rectifier-and-filter cards build a linear supply instead.
For more current at the same voltage, the S-500-48 delivers 48 V at 10 A from 500 W.
Supplied by Tiny Controls in India.
Specifications
| Output voltage | 48 V DC |
|---|---|
| Output current | 5 A |
| Output power | 250 W |
| Type | Switch-mode |
Questions
Will running my drive at 48V instead of 24V actually get me more torque at speed?
Yes — 48V reaches further into most stepper drive input ranges than 24V does (the Tstep-087 and DW870-DC both run up to 80V), which keeps torque up further into the speed range on the same motor, since winding inductance limits how fast current can be re-established as step rate rises.
Is 5A enough for my setup?
It covers the running current of a drive or two at this voltage — but a stepper drive's current draw spikes during acceleration, so size to the peak, not the average running current.
What about a drive's regenerative current on deceleration?
Worth checking — it holds less bulk capacitance than a linear supply, which matters for absorbing that. The TLP-04/TLP-05 rectifier-and-filter cards build a linear supply instead where that's a concern.
Is this the same power as the 24V version, just different current?
Yes — the same 250W as the S-250-24, wound for a higher-voltage, lower-current output instead.
I need more current at 48V — is there a bigger option?
Yes — the S-500-48 delivers 48V at 10A from 500W.
