TS-12 700W Air Cooled Spindle ER11 / 20000rpm
700 W air-cooled AC spindle, 10,000-20,000 rpm, ER11 collet, 75x78 mm, 190 mm long, 1.5 kg.
Overview

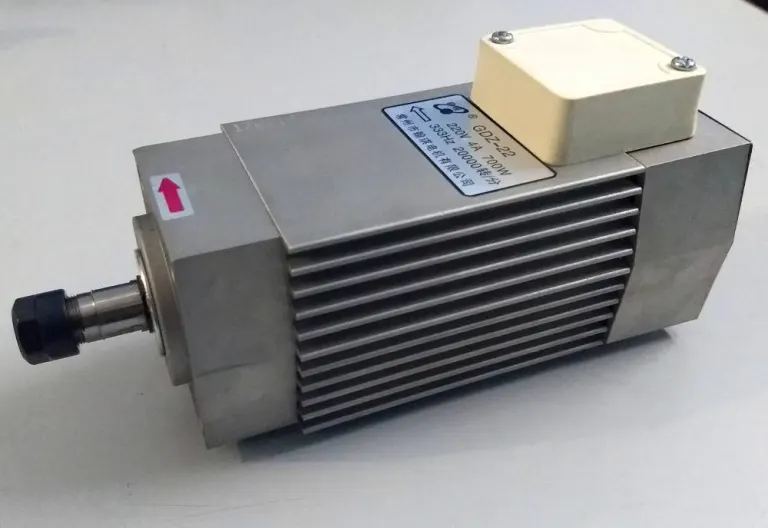

The TS-12 is a 700 W air-cooled spindle for general routing and light milling, sized for small to mid-size CNC routers.
It runs at 10,000-20,000 rpm and takes tooling through an ER11 collet, a common size for router bits up to about 6-8 mm shank. The body measures 75x78 mm and is 190 mm long, weighing 1.5 kg - light enough for a moving-gantry router.
Power is 700 W, drawn from a 220 V three-phase supply at 4.0 A through a variable frequency drive sized for the motor; the VFD's output frequency sets the running speed within the rated range.
Being air-cooled, it needs unobstructed airflow around the body and is not suited to fully enclosed spindle housings without ventilation - where that is a constraint, the water-cooled TS-19 covers the same power and speed range in a sealed jacket instead.
Supplied by Tiny Controls in India.
Specifications
| Power | 700 W |
|---|---|
| Speed | 10000 - 20000 rpm |
| Collet | ER11 Chuck |
| Body size | 75 × 78 mm |
| Body length | 190 mm |
| Weight | 1.5 kg |
| Supply voltage | 220 V AC |
| Phase | Three |
| Current draw | 4.0 A |
Questions
I want to enclose this in a sealed spindle housing to keep dust out — is that OK?
No — it's air-cooled and needs unobstructed airflow around the body, so it isn't suited to a fully enclosed housing without ventilation. If a sealed enclosure is a hard requirement, the TS-19 covers the same power and speed range but is water-cooled instead.
Is this good for general routing, or is it more of a fine-detail engraving spindle?
General routing and light milling is exactly what it's for — sized for small to mid-size CNC routers, not fine engraving work.
What router bit shank size does the collet take?
An ER11 collet, a common size for router bits up to about 6-8 mm shank.
What's needed to power it?
700 W from a 220 V three-phase supply at 4.0 A, through a VFD sized for the motor.
Will my gantry be able to carry this without slowing everything down?
Should be fine — 1.5 kg, light enough for a moving-gantry router.
