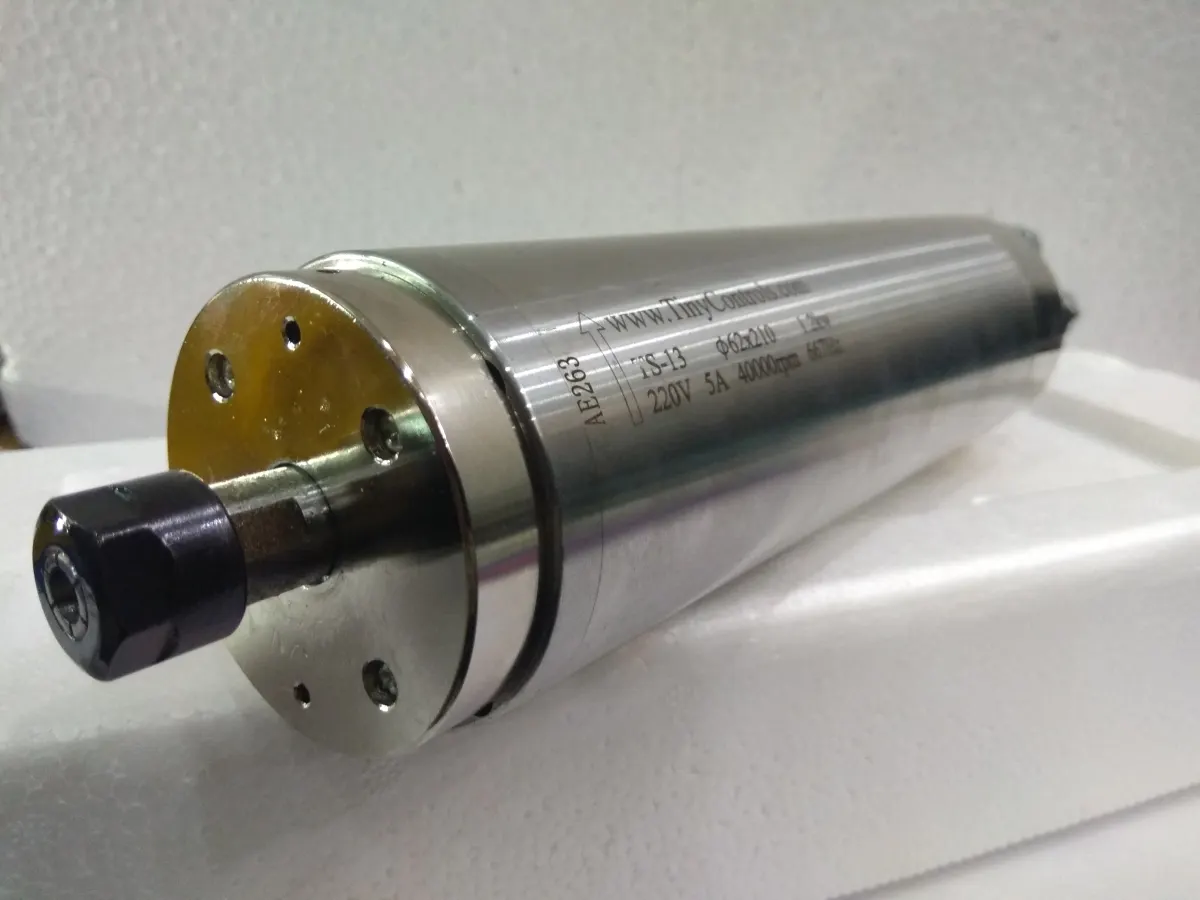

TS-13 1.2Kw 40000RPM Water Cooled Spindle ER11 (220V)
1.2 kW water-cooled AC spindle, 15,000-40,000 rpm, ER11 collet, 62 mm dia x 190 mm, 2.6 kg.
Overview
The TS-13 is a 1.2 kW water-cooled spindle for work that needs higher rpm than the 700-800 W spindles in this range can reach, while keeping the same ER11 collet.
It runs at 15,000-40,000 rpm, roughly double the top speed of the TS-19/TS-20 pair, which suits smaller-diameter cutters run at higher surface speed. The body is 62 mm in diameter and 190 mm long, weighing 2.6 kg.
Power is 1.2 kW, drawn from a 220 V three-phase supply at 5 A through a variable frequency drive; the VFD's output frequency sets the running speed within the rated range.
Water cooling is required at this speed and power - a closed coolant loop with a radiator or chiller keeps the bearings and winding within their working temperature at sustained high rpm, which an air-cooled body of this size could not manage.
For 220 V routing work at the more common 10,000-24,000 rpm range, the TS-19 (water-cooled) and TS-20 (air-cooled) cover the same 800 W class.
Supplied by Tiny Controls in India.
Specifications
| Power | 1.2 kW |
|---|---|
| Speed | 15000 - 40000 rpm |
| Collet | ER11 Chuck |
| Body diameter | 62 mm |
| Body length | 190 mm |
| Weight | 2.6 kg |
| Supply voltage | 220 V AC |
| Phase | Three |
| Current draw | 5 A |
Questions
Can I skip the coolant loop and run this air-cooled instead?
No — water cooling is required at this speed and power. A closed loop with a radiator or chiller is needed to keep the bearings and winding within their working temperature at sustained high rpm; an air-cooled body of this size couldn't manage that.
What's the actual reason to pick this over the TS-19 or TS-20?
Speed — this runs 15,000-40,000 rpm, roughly double the top end of the TS-19/TS-20 pair, suited to smaller-diameter cutters run at higher surface speed. For the more common 10,000-24,000 rpm range in the same 800 W class, the TS-19 (water-cooled) or TS-20 (air-cooled) cover that instead.
What collet does it take?
ER11.
What does it need to run — supply and VFD?
1.2 kW from a 220 V three-phase supply at 5 A, through a variable frequency drive.
