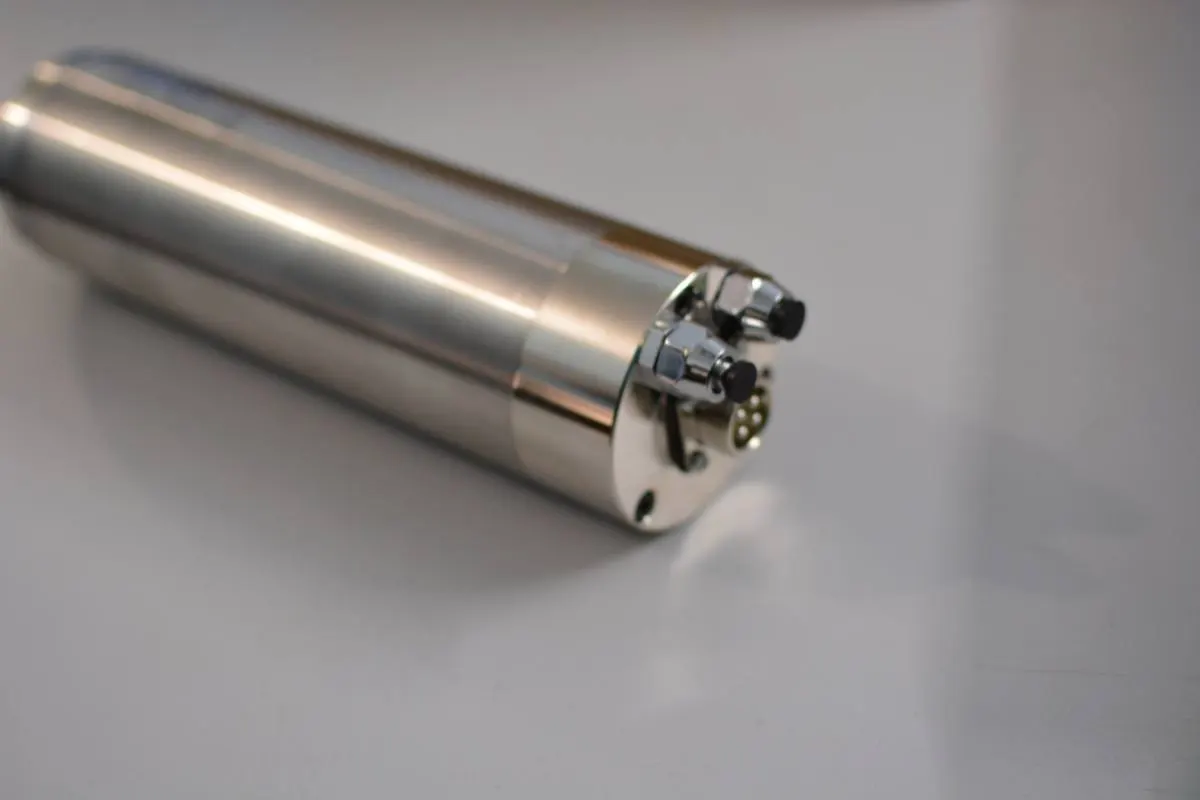

TS-19 800W Water Cooled Spindle ER11 (220V)
800 W water-cooled AC spindle, 10,000-24,000 rpm, ER11 collet, 65 mm dia x 183 mm, 2.6 kg.
Overview
The TS-19 is an 800 W water-cooled spindle for general routing and milling, sharing its power, speed range and body size with the air-cooled TS-20 - the only difference between the two is how the heat gets out.
It runs at 10,000-24,000 rpm and takes tooling through an ER11 collet. The body is 65 mm in diameter and 183 mm long, weighing 2.6 kg. Power is 800 W, drawn from a 220 V three-phase supply at 3.8 A through a variable frequency drive; the VFD's output frequency sets the running speed within the rated range.
Water cooling needs a closed loop with a radiator or small chiller plumbed to the spindle jacket, but in return the spindle runs quieter and holds a steadier temperature under continuous cutting than an air-cooled body of the same size, because the coolant carries heat away faster than a fan can.
Where running water isn't practical - a portable setup, or a machine that can't carry a coolant tank - the TS-20 gives the same power and speed with a fan instead.
Supplied by Tiny Controls in India.
Specifications
| Power | 800 W |
|---|---|
| Speed | 10000 - 24000 rpm |
| Collet | ER11 Chuck |
| Body diameter | 65 mm |
| Body length | 183 mm |
| Weight | 2.6 kg |
| Supply voltage | 220 V AC |
| Phase | Three |
| Current draw | 3.8 A |
Questions
Is this actually a better spindle than the air-cooled TS-20, or just a different way of cooling the same thing?
The latter — same power, speed range and body size, electrically identical. The only difference is how the heat gets out. In exchange for the extra plumbing, this one runs quieter and holds a steadier temperature under continuous cutting than an air-cooled body the same size, since coolant carries heat away faster than a fan can.
What am I actually plumbing this into — can I just run a hose off a tap?
No — it needs a closed loop with a radiator or small chiller plumbed to the spindle jacket, not open running water.
My setup is portable and I don't want to carry a coolant tank around — is there an alternative?
Yes — the TS-20 gives the same power and speed with a fan instead, no coolant loop needed.
What collet does it use?
ER11.
What power supply and current does it draw?
800 W from a 220 V three-phase supply at 3.8 A, through a VFD.
