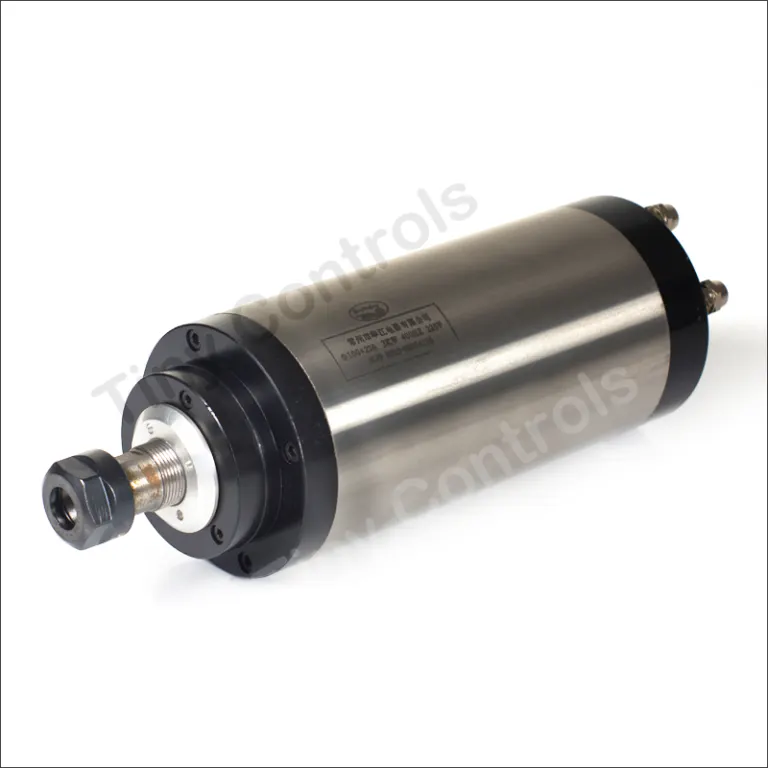

TS-30 3.2KW Spindle Motor ER20 (220V)
3.2 kW AC spindle, 10,000-24,000 rpm, ER20 collet, 100 mm dia x 260 mm, 6.8 kg, 220 V three-phase.
Overview
The TS-30 is a 3.2 kW spindle for heavier routing and milling than the 800 W-2.2 kW spindles in this range, in the 220 V version.
It runs at 10,000-24,000 rpm and takes tooling through an ER20 collet, suited to larger-diameter cutters than the ER11/ER16 spindles below it. The body is 100 mm in diameter and 260 mm long, weighing 6.8 kg.
Power is 3.2 kW, drawn from a 220 V three-phase supply at 14 A through a variable frequency drive sized for the motor; the VFD's output frequency sets the running speed within the rated range. At this current, supply wiring and the VFD's input rating need checking against the local 220 V circuit before ordering.
Where the workshop supply is 380 V three-phase instead, the TS-34 is the same 3.2 kW spindle wound for that voltage, drawing less current for the same power.
Supplied by Tiny Controls in India.
Specifications
| Power | 3.2 kW |
|---|---|
| Speed | 10000 - 24000 rpm |
| Collet | ER20 Chuck |
| Body diameter | 100 mm |
| Body length | 260 mm |
| Weight | 6.8 kg |
| Supply voltage | 220 V AC |
| Phase | Three |
| Current draw | 14 A |
Questions
14 A sounds like a lot for a 220 V circuit — will my existing wiring handle it?
That needs checking on your side before ordering — at this current, supply wiring and the VFD's input rating both need verifying against your local 220 V circuit, not assumed.
My workshop only has 380 V three-phase, not 220 V — is there a version for that?
Yes — the TS-34 is the same 3.2 kW spindle wound for 380 V, drawing less current for the same power.
What size cutters does the ER20 collet actually let me run compared to the smaller spindles?
Larger-diameter cutters than the ER11/ER16 spindles below it in this range.
Is this suited to heavier cutting than your other 220 V spindles?
Yes, that's specifically what it's for — heavier routing and milling than the 800 W-2.2 kW spindles in this range.
How big and heavy is it?
100mm diameter, 260mm long, 6.8 kg.
