Tstep-484 Stepping Driver
Compact two-phase stepper drive, 18-48 V, 0.7-4.0 A jumper selectable, with microstepping.
Overview

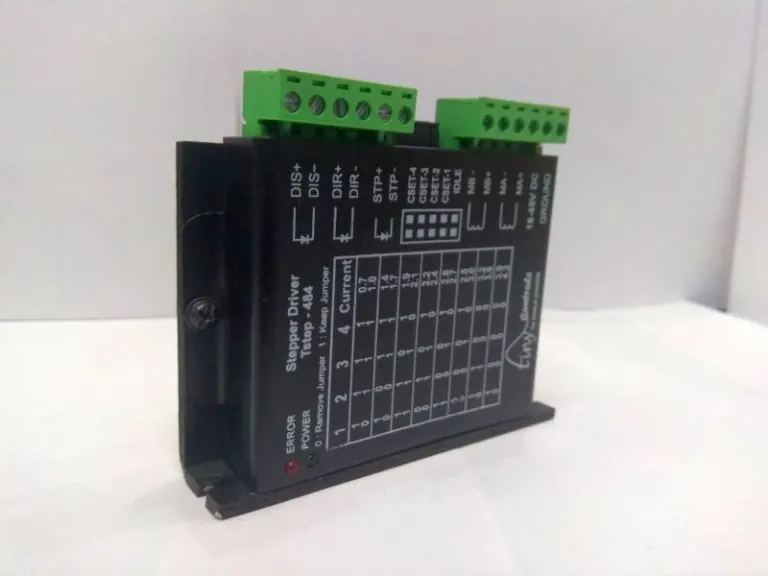

The Tstep-484 is the entry point to the Tstep range, sized for smaller machines and lighter motors.
It runs from 18-48 V with output current set by jumper from 0.7 A to 4.0 A — a range that suits NEMA 17 and smaller NEMA 23 motors, which is most of what a desktop router, engraver or small feeder needs. The lower current floor of 0.7 A matters on small motors: setting a drive well above a small motor's rated current is a common way to cook it.
Step and direction inputs are optically isolated. Idle current reduction lowers the standing current when the axis is stationary, and short-circuit protection covers a shorted or mis-wired motor lead.
If the machine needs more voltage headroom to hold torque at speed, the Tstep-087 range runs to 80 V.
Designed and built by Tiny Controls in India.
Specifications
| Supply voltage | 18 - 48 V |
|---|---|
| Output current | 0.7 - 4.0 A |
| Microstepping | Yes |
| Current setting | Jumper selectable |
| Idle current reduction | Yes |
| Short-circuit protection | Yes |
| STEP / DIR inputs | High Speed Optically Isolated |
Downloads
Questions
Which motors suit the Tstep-484?
Motors rated at 4.0 A per phase or below — NEMA 17 and smaller NEMA 23 frames. Set the drive current to the motor's rated phase current, never above it.
What microstep settings does it offer?
Our record confirms microstepping but does not list the available settings. Please ask us before ordering if a specific resolution is required.
Is 48 V enough?
For a small machine, yes. Higher supply voltage preserves torque at higher step rates, so if your axes run fast, look at the 80 V Tstep-087 range instead.
